Bellows Coupling: 3/8 in. x 3/8 in. Bores

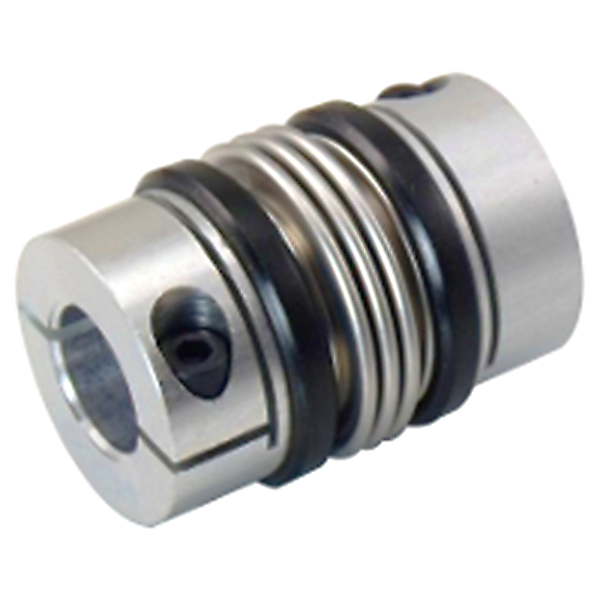

Bellows coupling, Clamp, 26mm OD, 3/8in. x 3/8in. bores
Price Each:
$55.6480
Total Price:
$86.9500
Quantity:

 To $55.6480

536.26.3131 Specifications:

  • Unit System: inch
  • Bore B1: 0.3750 in.
  • Bore B2: 0.3750 in.
  • Outside Diameter: 1.020 in.
  • Type: Bellows
  • Material: Aluminum / Stainless
  • Bore Tolerance: +.0012 in.
  • Backlash: Torsionally Rigid
  • Fastening Method: Clamp
  • Minimum Order Qty.: 1
  • Max RPM: 3500
  • Torsion Stiff (Lb*in/Deg): 117
  • Electrical Isolation: No
  • Length Extended: N/A
  • Max Angular Offset: 2 degrees
  • Max Axial Offset: ±0.007 in.
  • Mass: 34g
  • Max Torque: 28.30 lb-in
  • Temperature Range: -40°F to +478°F
  • HP @ 1750 RPM: N/A
  • Typ Air Gap: N/A
