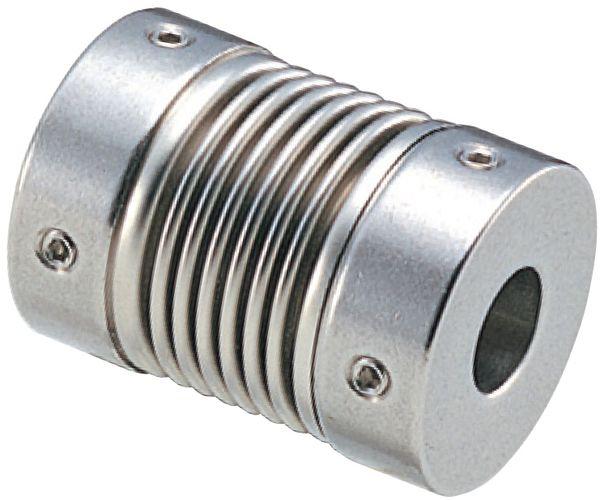

Bellows Flex Coupling: 3/8" x 3/8" Bores

Bellows Flexible Coupling, Stainless Steel Hubs and Bellows, Set Screw Style, 3/8" x 3/8" bores, 0.79" OD
Price Each:
for Price
Quantity:


MFBS-20-9.525-9.525 Specifications:

  • Unit System: inch
  • Bore B1: 0.3750 in.
  • Bore B2: 0.3750 in.
  • Outside Diameter: 0.790 in.
  • Type: Bellows
  • Material: Stainless Steel
  • Bore Tolerance: +.0006 in.
  • Backlash: Zero Backlash
  • Fastening Method: Set Screw
  • Minimum Order Qty.: 1
  • Max RPM: 31,000
  • Torsion Stiff (Lb*in/Deg): 34
  • Electrical Isolation: No
  • Length Extended: N/A
  • Max Angular Offset: 2 degrees
  • Max Axial Offset: +0.024/-0.071 in.
  • Mass: 37g
  • Max Torque: 26.55 lb-in
  • Max Temp: 302°F (approx)
  • HP @ 1750 RPM: N/A
  • Typ Air Gap: N/A
