Universal Lateral Offset Couplings: 5mm x 5mm Bores

201.18.2020

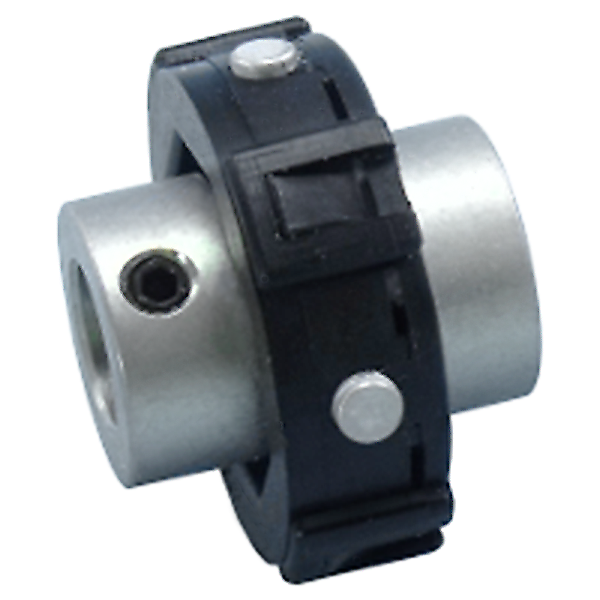

Click image to enlarge
Download CAD

 To $17.74
Price Each: From $17.74
Total Price: $27.83
Quantity:
Additional discounts may be available for higher quantities. Request a quote for additional volume pricing.

Uni-Lat coupling, Set Screw, 18mm OD, 5mm x 5mm bores
Product Files:
Specifications:
  • Unit System: metric
  • Bore B1: 5mm
  • Bore Tolerance (in): +.0012
  • Bore B2: 5mm
  • Outside Dia.: 0.710 in.
  • Fastening Method: Set Screw
  • Length: 0.560 in.
  • Max RPM: 3,000
  • Torsion Stiff (Lb*in/Deg): 3.86
  • Minimum Order Qty.: 1
  • Material: Alum. / Acetal
  • Max Torque (in-lb): 2.66
  • Max Radial Offset (in.): 0.008
  • Max Angular Offset: 11°
  • Max Axial Offset: 0
  • Max Shaft Penetration: 0.18
  • Backlash: Zero Backlash
  • Weight (g): 7
  • Type: Unilateral
