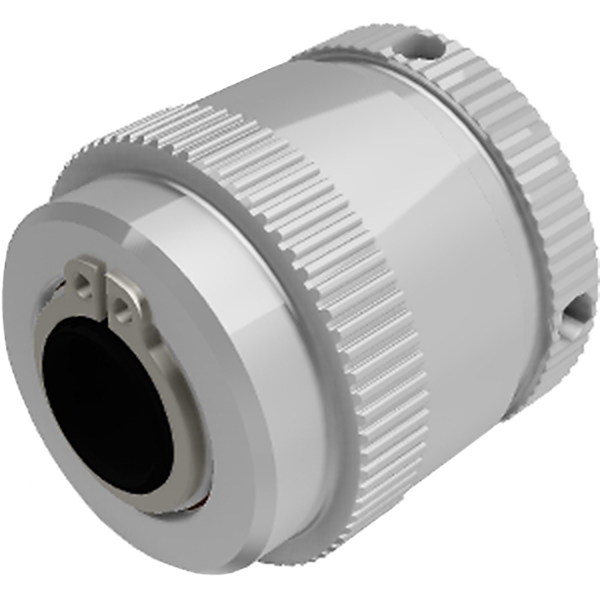

Adjustable Friction Clutches (up to 26.6 in. lb.)

Shaft mounted clutches from Ondrives.US provide high precision control in motion control applications and can function as a drag brake or override device. Our Shaft Mounted Adjustable Friction Clutches for Mounted Components are adjustable drag torque up to 26.6 in.lb. They feature an aluminum housing and adjuster ring, heat-treated steel hubs, and sintered bronze bearings

Select from the options below or download the Product Specifications PDF to view the technical specifications for all our shaft mounted clutches.



The Ondrives.US Advantage: Shaft Mounted Adjustable Friction Clutches for Mounted Components

Component mount clutches are a type of adjustable friction clutch used to protect motors from burnout.  Friction clutches feature adjustable slip or drag torque and provide controlled slip between the shaft and the mounted gear or pulley when loads exceed the set torque.

Ondrives.US is a leader in precision gears and drive components. Our component mount clutches have a 30 million slip cycle life and are engineered for durability and longevity. Adjustable Friction Clutch for Mounted Component features include:

  • Max. backlash: 2°

  • Max. slipping speed: 1,000 RPM

  • Max. adjustable drag torque up to 26.6 in.-lbs.

  • Operating temperature range: 14°F to 176°F (-10°C to +80°C)

  • Option to customize or modify standard models

Adjustable Friction Clutch for Mounted Component Size Options

We offer set screw and clamp hub options in inch or metric bore sizes. Typical uses for component mount clutches include mounting sheaves, gears, sprockets, pulleys, and other power transmission components.

We also offer Modified and Custom Adjustable Friction Clutches for Mounted Component applications with unique sizing or torque requirements and Shaft to Shaft Component Mount Clutches up to 100 in. lb.

Custom Adjustable Friction Clutches Manufactured to Your Exact Specifications

At Ondrives.US, we can assist with designs, modifications, prototypes, and the complete production of custom Shaft Mounted Adjustable Friction Clutches for high-performance applications. If your project specifications require custom mechanical components, our engineering team can produce parts and components that match your drawings and meet your performance needs.

Order High-Performance Shaft Mounted Adjustable Friction Clutches for Mounted Components Today

Ondrives.US stocks adjustable friction clutches in the style, size, and drag torque you need. Select from our standard options or request customization to fit your application. Compensate for shaft misalignment with our high-precision Adjustable Friction Clutch for Mounted Components with adjustable drag torque up to 26.6 in. lb.

Submit your quote request today or contact us to discuss your requirements with one of our engineers.
