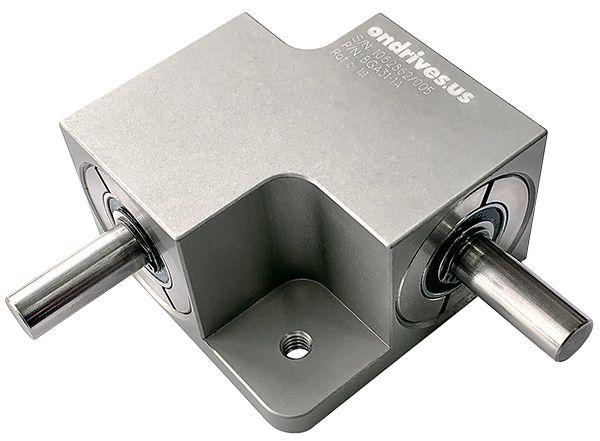

Miniature Bevel Gearboxes
Bevel gearboxes contain cone-shaped gears with tooth-bearing faces that intersect with two shafts set at 90-degree angles, though they can also be designed to work at other angles. The gear drives transfer torque by using the power of two axles meeting and can change the direction of force or operating angle of machinery. Small bevel gearboxes are a fundamental component of many drive systems and are manufactured in a wide range of configurations to meet the needs of various mechanical applications.
We provide small bevel gearboxes in a range of options, including custom or modified bevel gearboxes. Order your gear drive today from our selections below or contact us to discuss customization options for your specific gearbox application. Ondrives.US also has a Gearbox Buyers Guide to help you choose to right bevel gearbox for your application.
We provide small bevel gearboxes in a range of options, including custom or modified bevel gearboxes. Order your gear drive today from our selections below or contact us to discuss customization options for your specific gearbox application. Ondrives.US also has a Gearbox Buyers Guide to help you choose to right bevel gearbox for your application.Ondrives.US manufactures speed reducers are application rated for optimum operation and cost. Our miniature bevel gearboxes deliver up to 2,000 RPM and you can balance the torque to RPM and operating life. They are constructed from anodized aluminum and feature 416 or 303 stainless steel shafts and sealed steel ball bearings to provide the durability you need in a miniature gear drive. Our bevel gearboxes are offered in inch and metric unit systems and feature a 1:1 ratio.
The Ondrives.US Advantage for Bevel GearboxesOndrives.US designs and manufactures high precision micro speed reducers in a range of sizes and configurations that can be further modified based on your unique application requirements.
Our miniature bevel gear drive features and advantages include:
- Lubricated for life
- Ratio of 1:1
- Sturdy, anodized aluminum housing
- BGH16 model features 416 stainless steel shafts
- BG19 to BG31 models feature 303 stainless steel shafts
- Sealed steel ball bearings
- Standard backlash of 1°, with optional 1/2° backlash available
- Up to 3,000 RPM
- Temp range -5° F to +175° F, optional to -40° F
- Made in the USA with American CNC machines
- 2-year warranty
Request a Quote for Modified or Custom Bevel GearboxesOndrives.US provides a range of gearboxes and speed reducers in standard options and offers customization and modification for unique applications. If you’re not sure where to start, review our Buyer’s Guide for an overview of things to consider when selecting your bevel gearbox.
Contact us today for additional information or request a quote for custom micro gear reducers.
