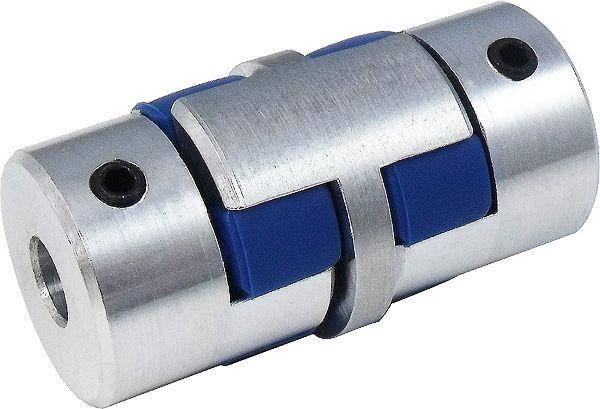

Cardan Curved Jaw Couplings

Click image to enlarge

Standard style Jaw couplings accommodate very little radial or angular misalignment between shafts. Ondrives.US unique Cardan Jaw Couplings double the angular capability of standard Jaw couplings and accommodate a large amount of radial misalignment. Our cardan shaft couplings absorb vibration, eliminate metal-to-metal contact and the need for lubrication while transmitting torque and rotary motion between two shafts.

Jaw couplings are easy to install and have a fail-safe design for operation even if the elastomer spider fails. This coupling style is ideal for operating environments requiring moisture, oil, or chemical resistance. Cardan jaw couplings are used to couple shafts in various applications including conveyors, generators, pumps, gearboxes, compressors, and blowers.

Zero Backlash Cardan Shaft Couplings for Motion Transfer Applications

Ondrives.US is a leading designer and manufacturer of high-performance couplings. Our reliable, heavy-duty Cardan jaw couplings are manufactured with top quality materials and unparalleled engineering for superior performance and long working life. These jaw couplings provide exceptional shock and vibration dampening and are ideal for a broad range of motion transfer applications.

Cardan Curved Jaw Couplings with Double the Misalignment Capability

Our specialty Cardan shaft couplings feature a unique Cardan joint that allows for greater angular and radial misalignment than other coupling models. In fact, our Cardan curved jaw couplings offer double the misalignment capability and increase the radial alignment capability exponentially.

Ondrives.US Cardan curved jaw couplings are available in a range of inch and metric bore sizes, with torque levels up to 1,060 lbs.-in. Our jaw couplings provide zero backlash performance at speeds up to 34,100 RPM and feature high-quality materials for extended service life.

For full specifications and Dimensional Parametric Search, see individual product listings.



The Ondrives.US Advantage for Cardan Couplings

Our Cardan shaft couplings are made in the U.S.A. and allow for greater angular & radial misalignment than other couplings on the market. Features and benefits of our Cardan jaw couplings include:
  • High radial misalignment range
  • Torque up to 1,060 lbs.-in
  • Zero backlash
  • Max. operating speed: 34,100 RPM
  • High torsional stiffness to 33,000 in-lbs./rad
  • Exceptional wear resistance
  • Long service life
  • Excellent shock & vibration damping
  • Resistant to grease, oil, dirt, sand & moisture
  • Good atmospheric & chemical resistance
  • Operating temperature range: -40° to 212°F (-40° to 100°C)
  • Inch & metric bores available
  • Any bore-to-bore combination available within established limits

Resolve Shaft Misalignment Issues with Cardan Shaft Couplings from Ondrives.US

Ondrives.US’ Cardan jaw couplings resolve angular and axial misalignment issues and can be customized to your unique specifications. Contact one of our application engineers to discuss your performance needs.
