Crossed Axis Gearboxes

Cross axis gearboxes, also called helical gear reducers, feature helical cut gear teeth that mesh simultaneously and distribute the load evenly, reducing wear on individual teeth.  The angled teeth also create a smoother transition for reduced noise and vibration, even at high speeds and loads.

Crossed axis helical gearboxes are a common type of gearbox for vehicle and equipment transmissions. These devices use bearings to support the thrust load, enabling them to generate large amounts of thrust. When mounted to perpendicular shafts, helical gearboxes can be used to adjust the rotation angle by 90°. Download our free helical gearbox spec sheet or see the individual product listings for additional specifications.


Precision Helical Gear Reducers Built for High Performance

Ondrives.US has been designing, engineering, and manufacturing high performance crossed axis helical reduction gearboxes for decades. Our compact crossed axis gearboxes produce an output at 90° from the input, and are manufactured with anodized aluminum housings, hardened alloy steel input gears, and hardened alloy steel or aluminum-bronze output gears (varies by model). Precision manufacturing ensures superior helical gearbox performance and reliable service in even the most demanding applications.

High-Efficiency, Low Backlash Crossed Helical Gears

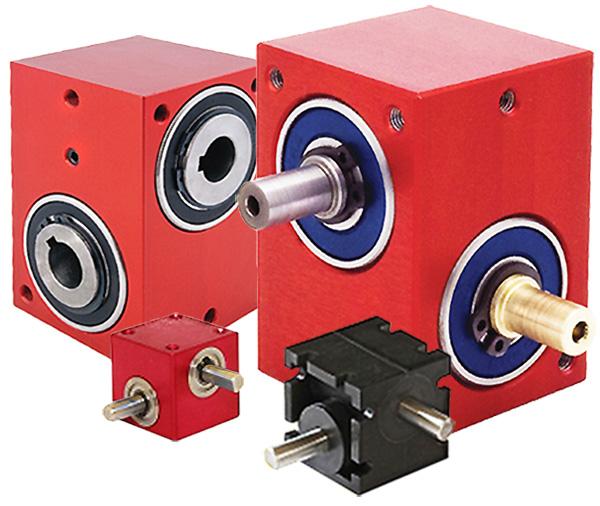

Our reliable, high-performance E Series right angle helical gear boxes are available in numerous sizes and configurations to meet your application requirements. E Series 90-degree crossed helical gears deliver output torque values as high as 62 Nm, with minimal backlash.
E Series right angle helical gearboxes (E and EA models) come with a variety of gear ratios (1:1 to 40:1) and input/output shaft sizes, making it easy to find the right model for your needs. All crossed axis gearboxes provide high efficiency (up to 94% at 1,000 RPM) and low backlash (as little as ≤30 arc minutes).
If you’re unsure what type of helical gear reducer is right for your application, view our Buyer’s Guide for ten important points to consider when choosing gearboxes. Another valuable reference, Inertia and the Use of Inertia Figures offers a formula for dealing with inertia in gearbox selection.

Cross Axis Gearbox Input & Output Shafts

Input shafts and output shafts with drive keys and retainer rings can be supplied to your specifications for any of our crossed axis gearboxes. We carry P Series gearbox output shafts designed specifically for our cross-axis gear reducers.

The Ondrives.US Advantage

  • Highly efficient helical gear boxes (as high as 94% at 1,000 RPM)
  • 90-degree output angle
  • Low backlash (1° standard; as low as ≤30 arc minutes are available)
  • Standard ratios from 1:1 to 40:1; custom gear ratios also available
  • Inch and metric helical gear box size shafts
  • Maximum input speed: 3,000 RPM (varies by model)
  • Anodized aluminum casing with alloy steel or aluminum bronze gears
  • Permanent lubrication
  • Single or Double ended shafts available

Custom Crossed Axis Gearboxes Manufactured to Your Exact Specifications

At Ondrives.US, we can assist with designs, modifications, prototypes, and complete production of custom drive components and gears for any application. If your project specifications require custom mechanical components, our engineering team can produce parts and components that match your drawings and meet your performance needs.

Contact Ondrives.US for Precision Crossed Axis Gearboxes

Ondrives.US quality surpasses the competition! Order the right angle helical gear reducers you need, request a quote, or contact us for more information.
