Custom Shafts

Ondrives.US stocks standard, precision ground shafts in diameters from 1/32 to 2 inch and a similar range of metric diameters. Available lengths range from 1 inch up to 6 feet and in 7 different steel and stainless-steel materials.

We are also equipped to manufacture custom shafts to your exact requirements. Almost any machinable material can be supplied, custom ground and cut to any length up to about 12 feet.

Benefits of Working with A Custom Shaft Manufacturer

We will build your shafts to your specific diameter and tolerance. Specify the surface finish and straightness you need. Add custom journals, machined flats, key slots, retainer ring grooves, end chamfers or radius, tapers, internal or external screw threads or cross drilled holes. We will do it all to your specifications.

Customized Gear Shafts Engineered for Quality and Precision

Ondrives.US manufactures custom shafts to give you a complete, built-to-spec motion transfer solution for your unique application. We are the industry’s leading custom shaft manufacturer, with the engineering expertise and fabrication capabilities to provide high precision shafts that meet even the most exacting requirements.

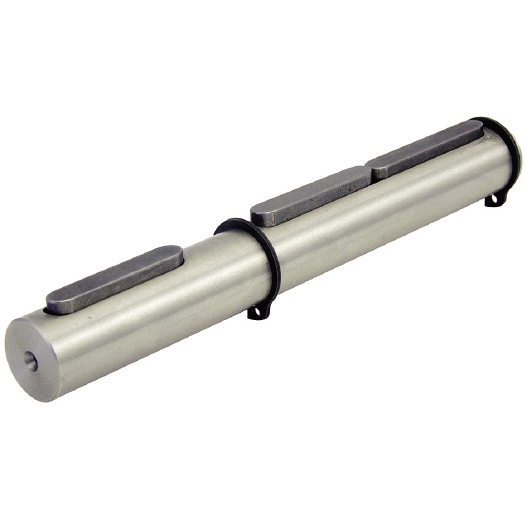

Our custom shafts are manufactured to meet the same high standards for quality and precision that our stock shafts are famous for. Whether you need grooved shafts, single or double ended gearbox shafts, or other precision ground shafts, we will deliver exactly what you need.

The Experts in Custom Shaft Manufacturing

Whether you have a completed CAD file, a design sketch, or just a general idea of what you need, Ondrives.US will work with you to turn your customized shaft design into the real thing.

Request a quote on the custom shaft(s) you need, or contact Ondrives.US to discuss your application and performance requirements.

The Ondrives.US Advantage for Custom Shafts Customized Gear Shafts Engineered

Custom gearbox shafts provide an alternative to off-the-shelf shafts for all your high precision applications. Features and options for custom shafts from Ondrives.US include:
  • Shafts precision ground to ±0.0002” or better
  • Option of custom grooved shafts, custom single gearbox shafts, and custom double gearbox shafts available
  • Our standard materials include 303 stainless steel, 316 stainless steel, 416 stainless steel, 17-4 stainless steel, 12L14 carbon steel, or alloy steel. Other materials will be quoted on request.
  • Inch & metric sizes available; diameters range from 1/32” to 1-1/4” (0.8mm to 31.75mm)
  • Additional custom features: grooves, journals, flats, drill holes, threads, tapped holes, chamfers
  • Stringently exacted tolerance adherence
We also offer custom gears and custom gearboxes to accompany custom shafts for optimum performance in any application.

Request Customized Shafts for Your High Precision Application

As an experienced custom shaft manufacturer, we have the tools and expertise needed to deliver precision products that meet or exceed your expectations. Request a quote or contact Ondrives.US for custom shafts for your motion transfer needs.
