Shaft to Shaft Gearboxes

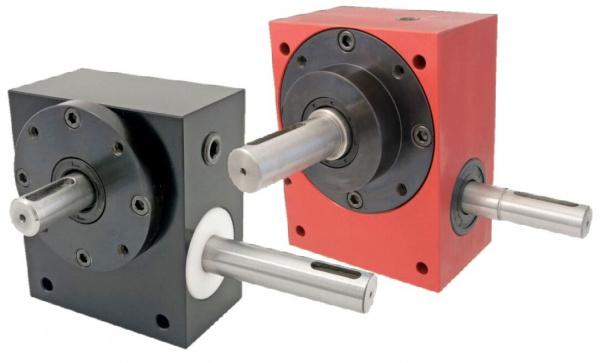

Shaft-to-shaft speed reducers feature an input shaft and an output shaft positioned at 90 degrees. These precision gearboxes have a worm and worm gear configuration capable of transmitting higher torque and offering high-speed reduction. Quiet operation and a compact design make shaft-to-shaft worm wheel gearboxes suitable for a broad range of speed reduction applications.
Ondrives.US has several decades of speed reducer manufacturing experience specializing in modified and custom designs. Our speed reducers come in various configurations offering ≤30 Arc Minutes of Backlash or better. Standard ratios range from 5:1 to 400:1, with custom ratios available by request. An inch or metric bore sizes.
Choose a product to view the full specifications. Reference this Gearbox Guide and Checklist of essential considerations in selecting a shaft-to-shaft speed reducer.
Ondrives.US has several decades of speed reducer manufacturing experience specializing in modified and custom designs. Our speed reducers come in various configurations offering ≤30 Arc Minutes of Backlash or better. Standard ratios range from 5:1 to 400:1, with custom ratios available by request. An inch or metric bore sizes.
Choose a product to view the full specifications. Reference this Gearbox Guide and Checklist of essential considerations in selecting a shaft-to-shaft speed reducer.
The Ondrives.US Advantage: High-Efficiency Shaft-to-Shaft Speed Reducers
Ondrives.US is ISO 9001:2015 Certified and approved to AS9100 Standards for design and manufacturing. Our worm wheel gearboxes feature hardened steel flow control worm gears and bronze wheels for durability and performance. Speed reducers are also greased for life to reduce maintenance.BP Series Speed Reducers
- Standard ratios from 10:1 to 43:1
- Backlash ≤30 arc minutes
- Output torques to 83Nm
- Machined aluminum housing
P and PA Series Speed Reducers
- High-efficiency gear reducers (as high as 90% at 1,000 RPM)
- Standard ratios from 5:1 to 120:1
- Standard backlash is ≤30 arc minutes
- Backlash as low as ≤4 arc minutes is available
- Single- or double-ended output shafts are available
- Ball bearings on input and output
- Machined aluminum housing
