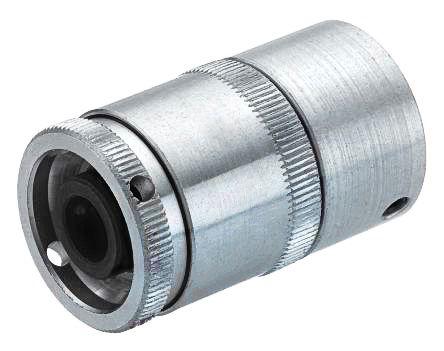

Shaft to Shaft Friction Clutches (up to 26.6 in.lb.)

Adjustable friction clutches from Ondrives.US are engineered for use in shaft to shaft connections up to 26.6 in.-lb. and can be installed as an Overrun Device or as a Drag Brake and offer a 30 million slip cycle life. We offer clutches with a set screw hub or clamp hub (one end only) in a range of inch and metric-compatible bore sizes.

Ondrives.US stocks inch or metric adjustable shaft clutch couplings available in a broad range of bore diameters, and max drag torques. Contact Ondrives.US to discuss your friction clutch requirements, or check out our brochures and catalogs to learn more about our high-precision motion control products.






The Ondrives.US Advantage

Features of our adjustable shaft to shaft clutches include an aluminum housing and adjuster ring, heat-treated steel hubs, heat-treated steel or brass clutch plates, and sintered bronze bearings. Additional features and benefits include:

  • Max. slipping speed: 1,000 rpm

  • Max drag torque: 26.6 in.-lb.

  • Operating temperature range: 14°F to 176°F (-10°C to +80°C)

Shaft to Shaft Friction Clutch Construction

Shaft to shaft friction clutches are comprised of a series of simple and robust steel clutch plates that engage a hub and friction rings that engage a housing. An adjuster acting through a spring and pressure plate provides tension to the plates and friction rings and can be connected to either the steel inner hub or the aluminum alloy housing.

How Do Adjustable Shaft to Shaft Friction Clutches Operate?

Shaft to shaft clutches serves two functions based on the installation type: protecting motors from burnout or maintaining tension in winding operations. Adjustable friction clutches connect two shafts of a device and change from a driving member to a slipping member once a motorized component exceeds the preset torque.

Order Shaft to Shaft Friction Clutches from Ondrives.US

In the market for a high-precision, ultra-dependable shaft clutch? Look no further than Ondrives.US. Our shaft to shaft friction clutches are manufactured from premium materials, delivering a max drag torque of 26.6 in.-lb in a broad range of operating temperatures. Contact us or request a quote to discuss your modified or customized shaft to shaft friction clutch needs today.
