Gear & Shaft Clamps

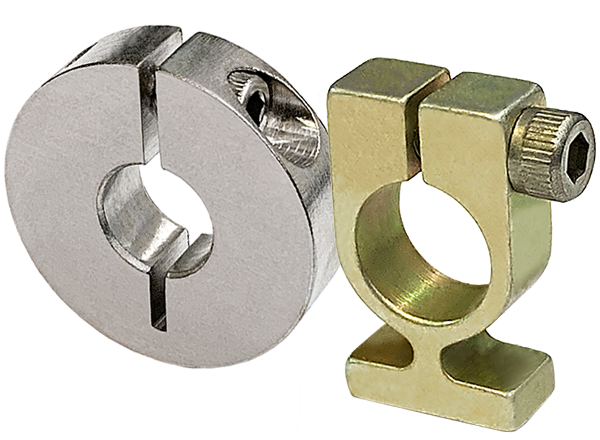

Split Collar Clamp Designs are available in anodized aluminum or 303 stainless steel. Split clamp design is available in inch and metric bores ranging from 3/32” to 16mm. These shaft lock collars can be permanently assembled by drilling through the clamp, gear hub and shaft and installing a dowel or spring pin.
Fish Tail Collar Clamp Designs are lighter in weight and have less inertia than the Split Clamps. This shaft clamp design is available in 303 stainless steel, 416 stainless steel and low carbon steel. Shaft locking collars are available in Inch and metric bores range from 3/16” to 13mm.
Four Screw Collars are collars with 4 set screws that can be used on Split Hub Gears. When tightened with uniform force, the 4 cup point set screws hold the gear firmly in place. These shaft lock collars are ideal if repositioning is required.
Many other types of clamps are available. Contact us for assistance.
The Ondrives.US Advantage
- Assemble components without damage to shafts
- Shaft locking collar clamps allow easy repositioning of components
- Bore sizes for nominal shafts and for split hub gears
- Inch and metric bores
- Balanced design
- Aluminum, steel and stainless steel
Ondrives.US Precision Ground Shafts are available from stock.
