Newly Re-designed P-Series Gearbox improves Backlash, Corrosion Resistance and Center Distance between Input and Outputs!

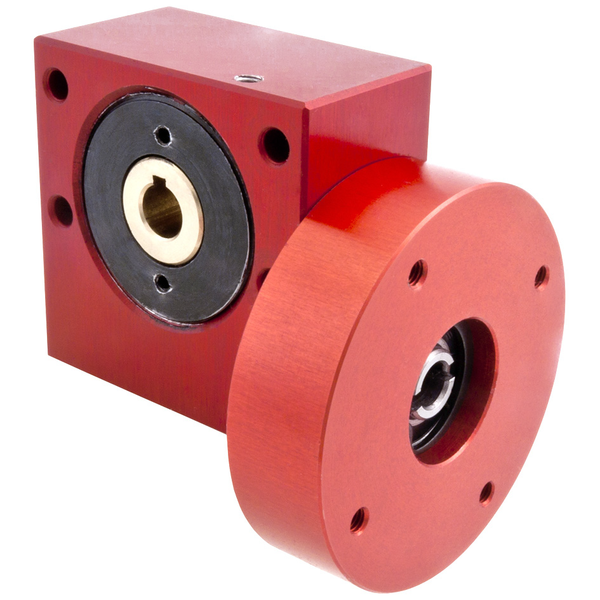

Miniature Flange Worm Gearboxes

Ondrives.US designs and manufactures mini gear reducers featuring a low backlash design that delivers input of up to 3,000 RPM and output torque ranging from 6:66:1 to 120:1. Our micro flange worm gearboxes have a small footprint and are fabricated from sturdy aluminum housings and steel interior components for durability and high performance. They produce output at 90° from the input and are available in a wide range of configurations with single ended or double ended output shafts for versatility.

Our Gearbox Buyers Guide includes a speed reducer checklist and is the perfect starting point for determining which flange worm gear reducer configuration is best for your application. Order from our standard selection of micro flange worm gearboxes below or contact us to learn more about options for modified or custom miniature flange worm gear drives.


The Ondrives.US Advantage for Flange Worm Gear Reducers

Flange worm gearboxes are mechanical power transmission drive components that are used for a range of high precision mechanical applications. Worm gear reducers contain gear devices, known as worms, on the input hollow bore output gears and are designed to transmit power between two shafts and change drive direction. Flange worm speed reducers are a nearly maintenance-free power transmission solution that delivers high efficiency with low backlash and can withstand demanding applications.
We provide high precision flange worm gearbox systems in various configurations that produce an input of 90° from the input and are designed to provide superior performance for a range of applications.
Additional miniature flange worm gear drive features and advantages include:
  • Lubricated for life
  • Provide high efficiency
  • Output torque ranging from 6:66:1 to 120:1
  • Input up to 3,000 RPM
  • Low backlash —as low ≤4 arc minutes
  • Durable aluminum housing
  • Steel interior components
  • Inch or metric options
  • Compact footprint
  • Option for single- or double-ended output shafts
  • Custom gear reducers and optional motor inputs also available

We Offer Flange Worm Gearboxes in a Range of Sizes and Configurations

Ondrives.US provides flange worm miniature speed reducers in a range of standard configurations. We also offer modified or customized gear drives manufactured to your exact specifications. Request a quote or contact us for more information.
