Six Beam Coupling: 1/2in. x 1/2in. Bores

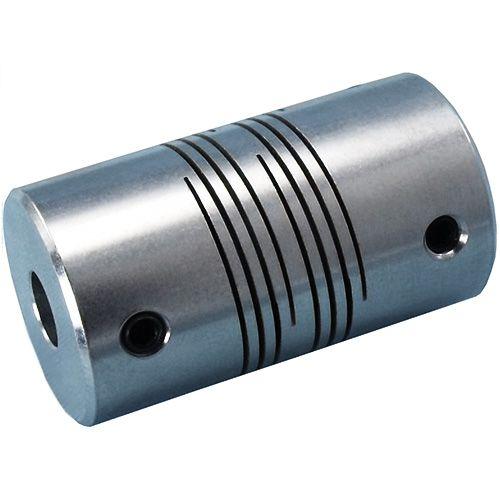

Six Beam Coupling, Set Screw, 32mm OD, 1/2in. x 1/2in. Bores
Price Each:
om $39.72
Total Price:
$62.0700
Quantity:

 To $39.72

706.32.3636 Specifications:

  • Unit System: inch
  • Bore B1: 0.5000 in.
  • Bore B2: 0.5000 in.
  • Outside Diameter: 1.250 in.
  • Length: 2.250 in.
  • Material: Aluminum
  • Bore Tolerance: +.0012 in.
  • Max RPM: 5000
  • Electrical Isolation: No
  • Length Extended: N/A
  • Max Angular Offset: 7 degrees
  • Mass: 100g
  • Max Torque: 133.00 lb-in
  • Temperature Range: -40°F to +248°F
  • Typ Air Gap: N/A

706.32.3636 Product Files:
