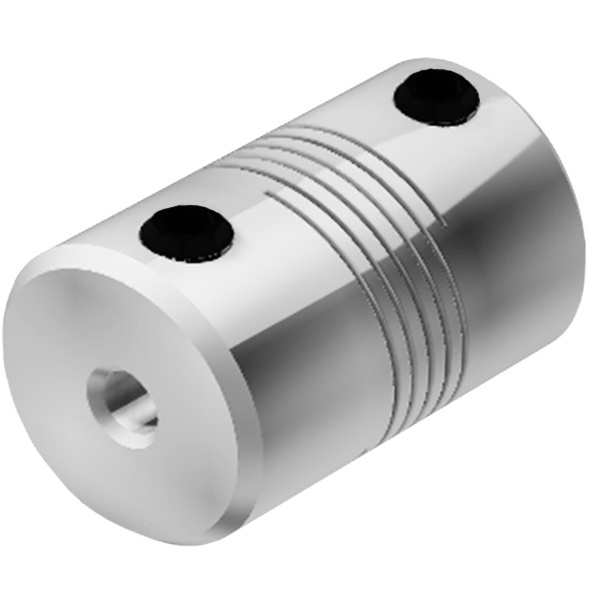

Three Beam Coupling: 3mm x 3mm Bores

Three Beam Coupling, Set Screw, 6mm OD, 3mm x 3mm Bores
Price Each:
$14.3680
Total Price:
$22.4500
Quantity:

 To $14.3680

724.06.1414 Specifications:

  • Unit System: metric
  • Bore B1: 3mm
  • Bore B2: 3mm
  • Outside Diameter: 0.250 in.
  • Type: Beam
  • Material: Aluminum
  • Bore Tolerance: +.0012 in.
  • Backlash: Torsionally Rigid
  • Fastening Method: Set Screw
  • Minimum Order Qty.: 1
  • Max RPM: 3500
  • Torsion Stiff (Lb*in/Deg): 0.236
  • Electrical Isolation: No
  • Length Extended: N/A
  • Max Angular Offset: 3 degrees
  • Max Axial Offset: 0.000 in.
  • Mass: 1g
  • Max Torque: 3.50 lb-in
  • Temperature Range: -40°F to +248°F
  • HP @ 1750 RPM: N/A
  • Typ Air Gap: N/A

724.06.1414 Product Files:
