Double Loop Coupling: 14 mm Bores

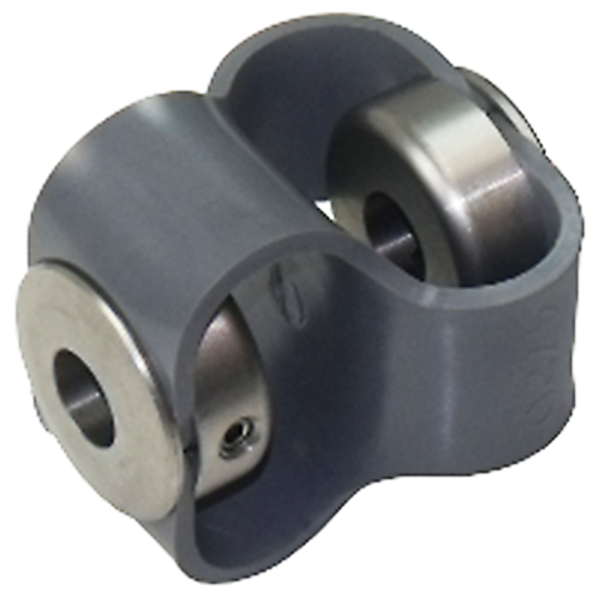

Double Loop coupling, Set Screw, 2-1/4in. OD, 14 mm bores
Price Each:
om $43.80
Total Price:
$68.4400
Quantity:

 To $43.80

049.40.3838M Specifications:

  • Unit System: metric
  • Bore B1: 14mm
  • Bore B2: 14mm
  • Outside Diameter: 1.125 in.
  • Type: Double Loop
  • Material: Stainless / Hytrel
  • Bore Tolerance: +.0020 in.
  • Backlash: Compliant
  • Fastening Method: Set Screw
  • Minimum Order Qty.: 1
  • Max RPM: 3,500
  • Torsion Stiff (Lb*in/Deg): Elastomeric
  • Electrical Isolation: Yes
  • Length Extended: N/A
  • Max Angular Offset: 15 degrees
  • Max Axial Offset: ±0.43 in.
  • Mass: 136g
  • Max Torque: 159.00 lb-in
  • Temperature Range: -40°F to +248°F
  • HP @ 1750 RPM: N/A
  • Typ Air Gap: N/A
