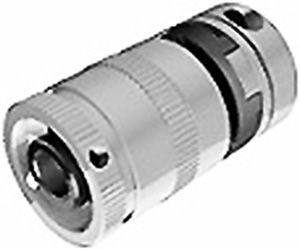

Adjustable Friction Clutch: .250 x .250 bores
Adjustable Friction Clutch, Set Screw, Max 11.7lb.in., .250 x .250 bores
Price Each:
$82.4256
Total Price:
$128.7900
Quantity:
Add to Cart
1-4 at $128.7900 each
5-9 at $117.8429 each
10-24 at $111.4034 each
25-49 at $104.9639 each
50-99 at $99.1683 each
100-249 at $92.7288 each
250+ at $82.4256 each
To
$82.4256
285.25.2424 Specifications:
Unit System: inch
Bore Diameter B1: 0.2500 in.
Bore Diameter B2: 0.2500 in.
Outside Diameter: 1.020 in.
Length: 2.100 in.
Max Drag Torque: 11.70 in-lb
Max Shaft Penetration B1: 1.220
Max Shaft Penetration B2: 1.220
Bore Tolerance: +.0012/-.000 in.
Fastening Method: Set Screw
Temp Range: -20°C to +60°C
Material: Alum. / Steel
Type: Misalignment
Backlash: Zero Backlash
Max RPM: 1,000
Weight: 0.1521 Lb.
Max Radial Offset: 0.024
Set Screw: M3
Torque Setting: Adjustable Torque
Max Axial Offset: 0.004
