Membrane Couplings: 3mm x 3mm Bores

460.19.1414
Click image to enlarge
Download CAD

 To $29.36
Price Each: From $29.36
Total Price: $40.97
Quantity:
Additional discounts may be available for higher quantities. Request a quote for additional volume pricing.

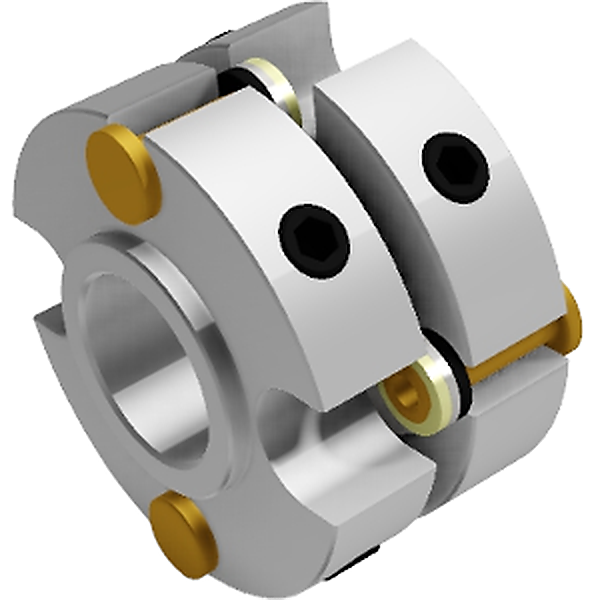

Membrane coupling, Set Screw, 19mm OD, 3mm x 3mm bores
Product Files:
Specifications:
  • Unit System: metric
  • Bore B1: 3mm
  • Bore Tolerance (in): +.0012
  • Bore B2: 3mm
  • Outside Dia.: 0.760 in.
  • Fastening Method: Set Screw
  • Length: 0.510 in.
  • Max RPM: 5,000
  • Torsion Stiff (Lb*in/Deg): 33.98
  • Minimum Order Qty.: 1
  • Material: Alum. / Stainless
  • Max Torque (in-lb): 8
  • Max Radial Offset (in.): 0
  • Max Angular Offset: 2°
  • Max Axial Offset: 0.004
  • Max Shaft Penetration: 0.22
  • Backlash: Torsionally Rigid
  • Weight (g): 7
  • Type: Membrane
