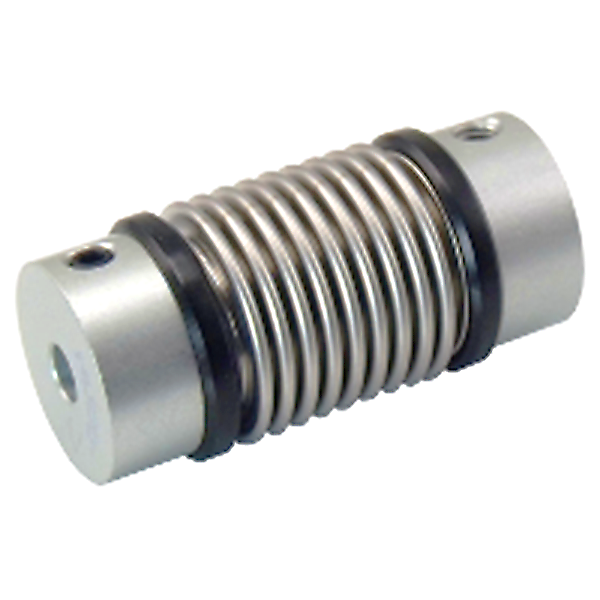

Bellows Coupling: 8mm x 8mm Bores

Bellows coupling, Set Screw, 20mm OD, 8mm x 8mm bores
Price Each:
om $52.24
Total Price:
$81.6300
Quantity:

 To $52.24

532.20.2828 Specifications:

  • Unit System: metric
  • Bore B1: 8mm
  • Bore B2: 8mm
  • Outside Diameter: 0.790 in.
  • Type: Bellows
  • Material: Aluminum / Stainless
  • Bore Tolerance: +.0012 in.
  • Backlash: Torsionally Rigid
  • Fastening Method: Set Screw
  • Minimum Order Qty.: 1
  • Max RPM: 3500
  • Torsion Stiff (Lb*in/Deg): 26.26
  • Electrical Isolation: No
  • Length Extended: N/A
  • Max Angular Offset: 6 degrees
  • Max Axial Offset: ±0.020 in.
  • Mass: 19g
  • Max Torque: 8.80 lb-in
  • Temperature Range: -40°F to +478°F
  • HP @ 1750 RPM: N/A
  • Typ Air Gap: N/A
