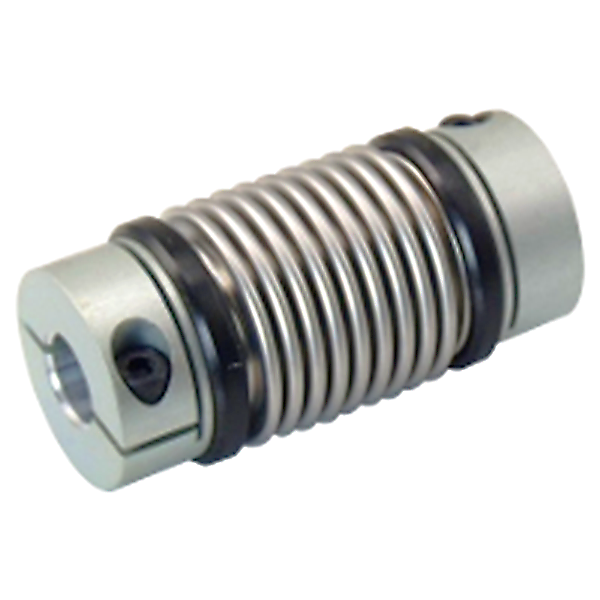

Bellows Coupling: 3/16 in. x 3/16 in. Bores

Bellows coupling, Clamp, 20mm OD, 3/16in. x 3/16in. bores
Price Each: From $47.50
Total Price: $74.22
Quantity:

 To $47.50

538.20.1919 Specifications:

  • Bore B1: 0.1875 in.
  • Bore B2: 0.1875 in.
  • Outside Diameter: 0.790 in.
  • Length: 1.780 in.
  • Type: Bellows
  • Material: Aluminum / Stainless
  • Bore Tolerance: +.0012 in.
  • Backlash: Torsionally Rigid
  • Fastening Method: Clamp
  • Minimum Order Qty.: 1
  • Max RPM: 5,000
  • Torsion Stiff (Lb*in/Deg): 26.26
  • Electrical Isolation: No
  • Max Radial Offset: 0.020 in.
  • Max Angular Offset: 6°
  • Max Axial Offset: ±0.020 in.
  • Mass: 18g
  • Max Torque: 8.80 lb-in
  • Temperature Range: -40°F to +478°F
  • Max Shaft Penetration B1 & B2: 0.43 in.
