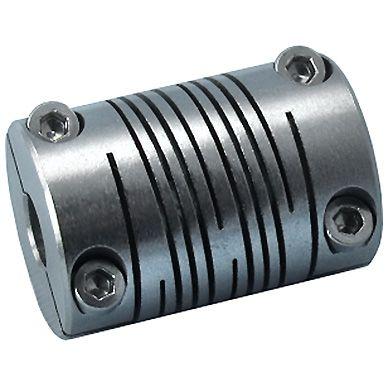

Six Beam Coupling: 1/4in. x 1/4in. Bores
Six Beam Coupling, Clamp, 19mm OD, 1/4in. x 1/4in. Bores
Price Each:
$48.70
Total Price:
$76.10
Quantity:
Add to Cart
1 at $76.10 each
2-4 at $72.30 each
5-9 at $69.63 each
10-24 at $65.83 each
25-49 at $62.02 each
50-99 at $58.60 each
100-249 at $54.79 each
250+ at $48.70 each
To
$48.70
703.19.2424 Specifications:
Unit System: inch
Bore B1: 0.2500 in.
Bore B2: 0.2500 in.
Outside Diameter: 0.750 in.
Type: Beam
Material: 303 Stainless Steel
Bore Tolerance: +.0012 in.
Backlash: Torsionally Rigid
Fastening Method: Clamp
Minimum Order Qty.: 1
Max RPM: 5,000
Torsion Stiff (Lb*in/Deg): 11.12
Electrical Isolation: No
Length Extended: N/A
Max Angular Offset: 7°
Max Axial Offset: 0.000 in.
Mass: 46g
Max Torque: 70.80 lb-in
Temperature Range: -40°F to +284°F
HP @ 1750 RPM: N/A
Typ Air Gap: N/A
703.19.2424 Product Files:
Catalog Page.pdf
