6-Beam > Six Beam Coupling: 4mm x 4mm Bores

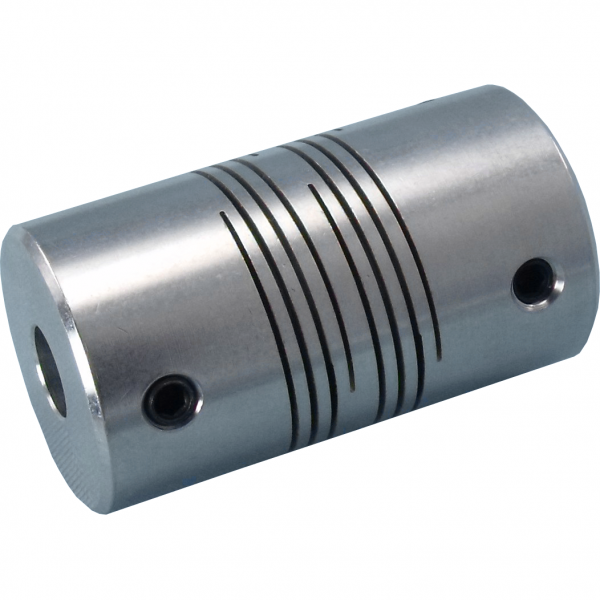

Six Beam Coupling: 4mm x 4mm Bores

Part Number: 706.09.1818

Six Beam Coupling, Set Screw, 9mm OD, 4mm x 4mm Bores
Price Each:
om $17.96
Quantity:
Minimum order:
4
Total Price:
$28.07
Quantity:Price:
2-4 $26.67
5-9 $25.68
10-24 $24.28
25-49 $22.88
50-99 $21.61
100-249 $20.21
250+  $17.97
706.09.1818 Specifications:
Unit System metric
Bore B1 4mm
Bore B2 4mm
Outside Diameter 0.400 in.
Length 0.770 in.
Material Aluminum
Bore Tolerance +.0012 in.
Max RPM 3500
Electrical Isolation No
Length Extended N/A
Max Angular Offset 2 degrees
Mass 2g
Max Torque 8.80 lb-in
Temperature Range -40°F to +248°F
Typ Air Gap N/A
706.09.1818 Product Files:
• Catalog Page.pdf
View CAD Model View CAD Library
