Encoder Shaft Couplings > Bellows Flex Coupling: 5mm x 5mm Bores

Bellows Flex Coupling: 5mm x 5mm Bores

Part Number: MFBS-12C-5-5

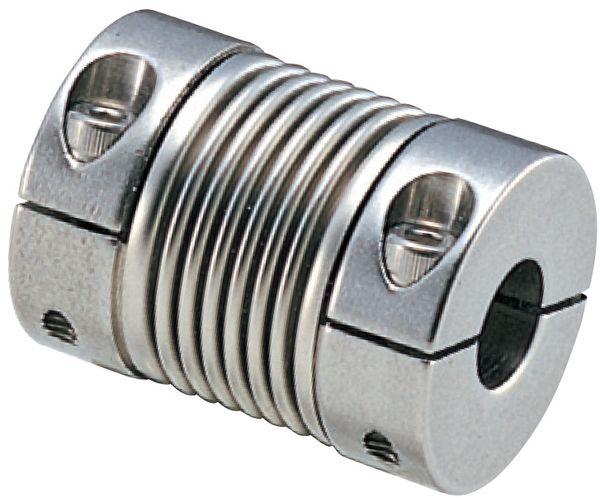

Bellows Flexible Coupling, Stainless Steel Hubs and Bellows, Clamp Style, 5mm x 5mm bores, 12mm OD
Price Each:
om $94.19
Quantity:
Total Price:
$102.3800
Quantity:Price:
1-2 $102.38
3-4 $100.33
5-9 $98.29
10-14 $96.24
15+  $94.19
MFBS-12C-5-5 Specifications:
Unit System metric
Bore B1 5mm
Bore B2 5mm
Outside Diameter 0.360 in.
Length 0.930 in.
Material Stainless Steel
Bore Tolerance +.018mm
Max RPM 3500
Electrical Isolation No
Length Extended N/A
Max Angular Offset 1.5 degrees
Mass 9g
Max Torque 8.85 lb-in
Typ Air Gap N/A
Max Temp 302°F (approx)
MFBS-12C-5-5 Product Files:
• Catalog Page.pdf
View CAD Model View CAD Library
