Single, Double & Extended Stage > Single Disc Coupling: 12mm x 12mm Bores

Single Disc Coupling: 12mm x 12mm Bores

Part Number: MHS-40C-12-12

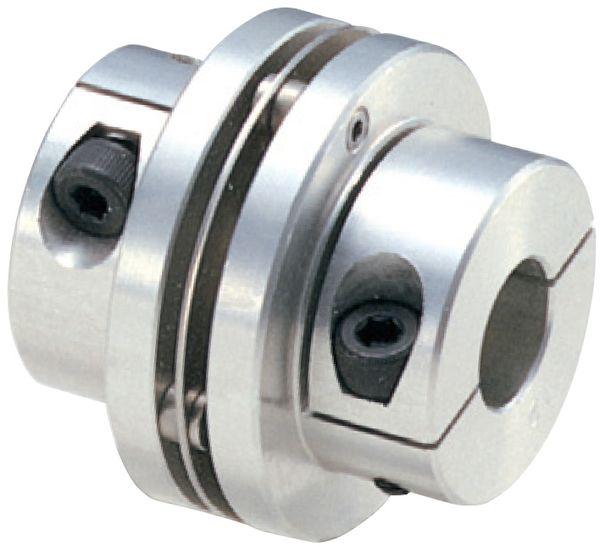

Single Disc Coupling, Aluminum Hubs, Stainless Steel Disc, Clamp Style, 12mm x 12mm Bores, 40mm OD
Price Each:
om $87.69
Quantity:
Total Price:
$95.3100
Quantity:Price:
1-2 $95.31
3-4 $93.40
5-9 $91.50
10-14 $89.59
15+  $87.69
MHS-40C-12-12 Specifications:
Unit System metric
Bore B1 12mm
Bore B2 12mm
Outside Diameter 1.570 in.
Length 1.500 in.
Material Aluminum / Stainless
Bore Tolerance +.027mm
Max RPM 15000
Electrical Isolation No
Length Extended N/A
Max Angular Offset 1 degrees
Mass 66g
Max Torque 70.81 lb-in
Temperature Range -4°F to +302°F
Typ Air Gap N/A
MHS-40C-12-12 Product Files:
• Catalog Page.pdf
View CAD Model View CAD Library
