Single, Double & Extended Stage > Double Disc Coupling: 16mm x 16mm Bores

Double Disc Coupling: 16mm x 16mm Bores

Part Number: MHW-63C-16-16

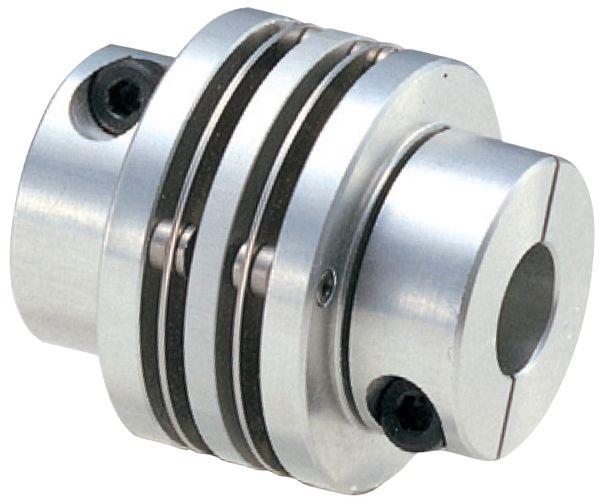

Double Disc Coupling, Aluminum Hubs, Stainless Steel Disc, Clamp Style, 16mm x 16mm Bores, 63mm OD
Price Each:
om $206.37
Quantity:
Total Price:
$224.3100
Quantity:Price:
1-2 $224.31
3-4 $219.82
5-9 $215.34
10-14 $210.85
15+  $206.37
MHW-63C-16-16 Specifications:
Unit System metric
Bore B1 16mm
Bore B2 16mm
Outside Diameter 2.480 in.
Length 2.280 in.
Material Aluminum / Stainless
Bore Tolerance +.027mm
Max RPM 10000
Electrical Isolation No
Length Extended N/A
Max Angular Offset 2 degrees
Mass 230g
Max Torque 177.02 lb-in
Typ Air Gap N/A
Max Temp +212°F (approx)
MHW-63C-16-16 Product Files:
• Catalog Page.pdf
View CAD Model View CAD Library
