Curved Jaw > Curved Jaw Coupling: 32mm x 32mm Bores

Curved Jaw Coupling: 32mm x 32mm Bores

Part Number: MJC-65-WH-32-32

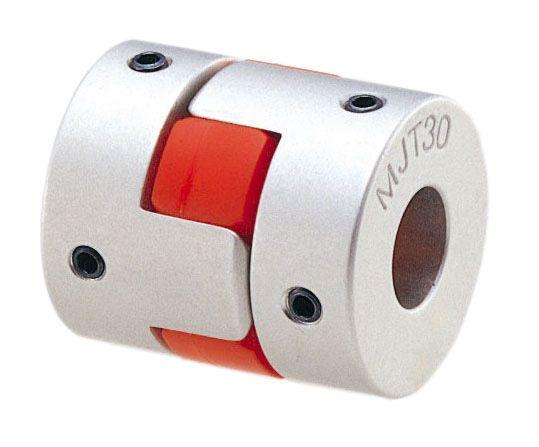

Curved Jaw Coupling, Aluminum Hubs, White Polyurethane Spider,92 Duro, Set Screw Style, 32mm x 32mm bores, 65mm OD
Price Each:
om $191.56
Quantity:
Total Price:
$208.2200
Quantity:Price:
1-4 $208.22
5-9 $201.97
10-24 $199.89
25-49 $195.73
50+  $191.56
MJC-65-WH-32-32 Specifications:
Unit System metric
Bore B1 32mm
Bore B2 32mm
Outside Diameter 2.560 in.
Length 3.54 in.
Material Aluminum / Polyurethane
Bore Tolerance +.039mm
Max RPM 9600
Electrical Isolation No
Length Extended N/A
Max Angular Offset 0.9 degrees
Mass 520g
Max Torque 814.2 lb-in
Temperature Range -4°F to +140°F
Typ Air Gap N/A
MJC-65-WH-32-32 Product Files:
• Catalog Page.pdf
View CAD Model View CAD Library
