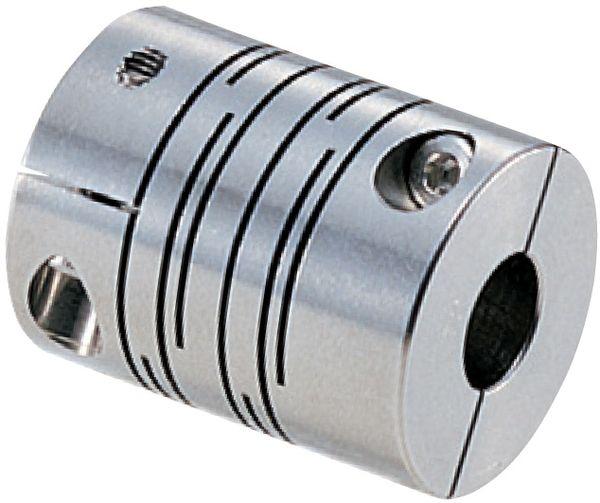

Stainless 8 Slit Beam Coupling: Clamp Style

Part Number: MSTS-16C-5-5

8 Slit Beam Coupling, Stainless, Clamp Style, 5mm x 5mm Bores, 16mm OD

Price Each:

om $92.42

Quantity:

Total Price:

$100.4600

Add to CartAdd to Quote

Quantity:	Price:
1-2	$100.46
3-4	$98.45
5-9	$96.44
10-14	$94.43
15+	$92.42

MSTS-16C-5-5 Specifications:
Unit System	metric
Bore B1	5mm
Bore B2	5mm
Outside Diameter	0.630 in.
Length	0.910 in.
Material	Stainless Steel
Bore Tolerance	+.018mm
Max RPM	3500
Electrical Isolation	No
Length Extended	N/A
Max Angular Offset	2 degrees
Mass	25g
Max Torque	8.85 lb-in
Typ Air Gap	N/A
Max Temp	+212°F (approx)

MSTS-16C-5-5 Product Files:
• Catalog Page.pdf
