8Slit > Stainless 8 Slit Beam Coupling: Set Screw Style

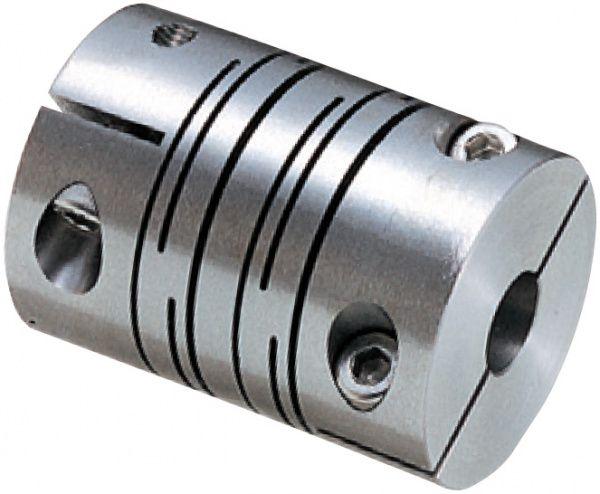

Stainless 8 Slit Beam Coupling: Set Screw Style

Part Number: MSTS-40-18-18

8 Slit Beam Coupling, Stainless, Set Screw Style, 18mm x 18mm Bores, 40mm OD
Price Each:
om $189.81
Quantity:
Total Price:
$206.3200
Quantity:Price:
1-2 $206.32
3-4 $202.19
5-9 $198.07
10-14 $193.94
15+  $189.81
MSTS-40-18-18 Specifications:
Unit System metric
Bore B1 18mm
Bore B2 18mm
Outside Diameter 1.570 in.
Length 2.210 in.
Material Stainless Steel
Bore Tolerance +.027mm
Max RPM 15000
Electrical Isolation No
Length Extended N/A
Max Angular Offset 2 degrees
Mass 350g
Max Torque 141.61 lb-in
Typ Air Gap N/A
Max Temp +212°F (approx)
MSTS-40-18-18 Product Files:
• Catalog Page.pdf
View CAD Model View CAD Library
