4Slit Couplings > Stainless 4 Slit Beam Coupling: Set Screw Style

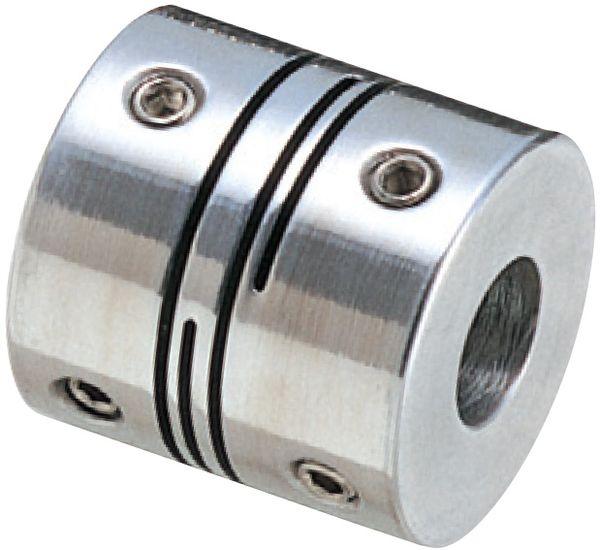

Stainless 4 Slit Beam Coupling: Set Screw Style

Part Number: MWSS-32-10-10

4 Slit Beam Coupling, Stainless, Set Screw Style, 10mm x 10mm Bores, 32mm OD
Price Each:
om $90.30
Quantity:
Total Price:
$98.1500
Quantity:Price:
1-2 $98.15
3-4 $96.19
5-9 $94.22
10-14 $92.26
15+  $90.30
MWSS-32-10-10 Specifications:
Unit System metric
Bore B1 10mm
Bore B2 10mm
Outside Diameter 1.260 in.
Length 1.260 in.
Material Stainless Steel
Bore Tolerance +.022mm
Max RPM 19000
Electrical Isolation No
Length Extended N/A
Max Angular Offset 1 degrees
Mass 130g
Max Torque 61.96 lb-in
Typ Air Gap N/A
Max Temp +212°F (approx)
MWSS-32-10-10 Product Files:
• Catalog Page.pdf
View CAD Model View CAD Library
