Crossed Axis Gearboxes > Crossed Axis Gearbox - 20:1 Ratio

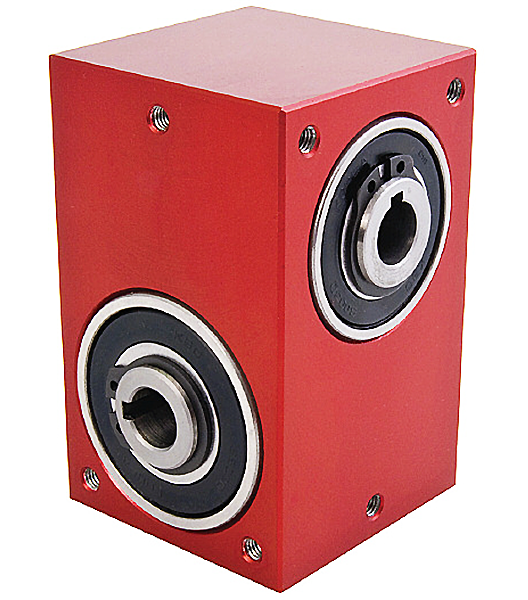

Crossed Axis Gearbox - 20:1 Ratio

Part Number: E20-20AR

Crossed Axis Gearbox, 6mm Input Bore, 6mm Output Bore, 20:1 Ratio
Backlash ≦10' arc minutes
Price Each:
om $543.51
Quantity:
Total Price:
$715.1500
Quantity:Price:
1-9 $715.15
10-24 $686.54
25-49 $643.64
50-99 $593.58
100+  $543.51
E20-20AR Specifications:
Ratio 20:1
Input Bore Diameter 6mm
Output Bore Diameter 6mm
Material Alum. / Steel
Efficiency @ 1000 RPM 67%
Output Torque @ 100 RPM 2.83 Nm
Output Torque @ 1000 RPM 1.63 Nm
Output Torque @ 3000 RPM N/A
Box Width 34mm
Box Length 34mm
Shaft Length N/A
Housing Material Aluminum
Use Feather Key KK2-22
Key Length 22
Key Width 2
Key Height 2
Shaft Output Type Offset Cross Axis
Use Double Shaft E20-DX
Use Single Shaft E20-X
E20-20AR Product Files:
• Catalog Page.pdf
