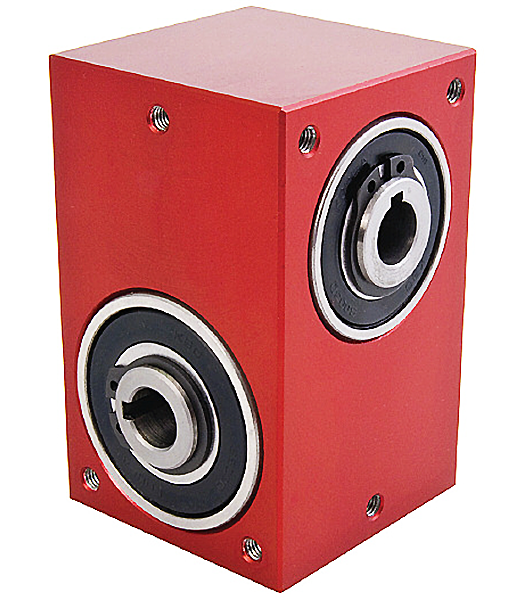

Crossed Axis Gearbox - 1:1 Ratio

Crossed Axis Gearbox, 10mm Input Bore, 10mm Output Bore, 2:1 Ratio
Backlash ≈1° arc degree
Price Each:
$332.97
Total Price:
$443.96
Quantity:

Quantity 1-9 10-24 25-49 50-99 100+
Price for each $443.96 $426.20 $399.56 $368.49 $332.97

E30-1 Specifications:

  • Ratio: 1:1
  • Backlash: ≈1°
  • Input Bore Diameter: 10mm
  • Output Bore Diameter: 10mm
  • Material: Alum. / Steel
  • Type: Helical
  • Output Torque @ 100 RPM: 4.00 Nm
  • Output Torque @ 1000 RPM: 2.50 Nm
  • Output Torque @ 3000 RPM: 1.50 Nm
  • Efficiency @ 1000 RPM: 90%
  • Weight: 1.7468 lb.
  • Max Input RPM: 3000
  • Output Type: Cross Axis
  • Box Height: 78mm
  • Box Width: 48mm
  • Box Length: 48mm
  • Housing Material: Aluminum
  • Use Feather Key: KK3-20
  • Shaft Length: N/A
  • Key Length: 20
  • Key Width: 3
  • Key Height: 3
  • Shaft Output Type: Offset Cross Axis
  • Use Double Shaft: E30-DX
  • Use Single Shaft: E30-X
