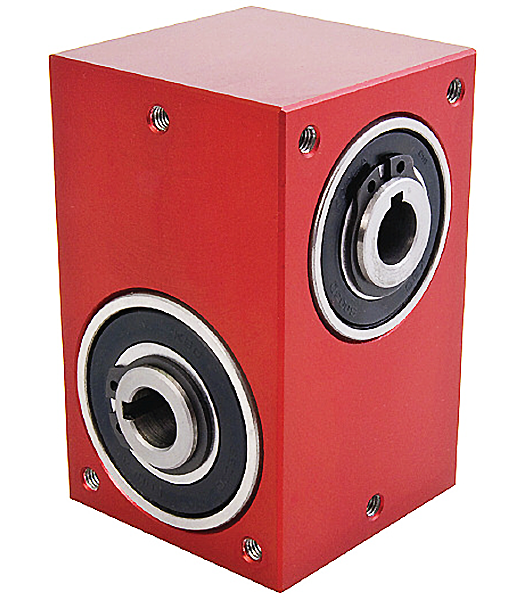

Crossed Axis Gearbox - 1:1 Ratio

Crossed Axis Gearbox, 15mm Input Bore, 15mm Output Bore, 2:1 Ratio
Backlash ≈1° arc degree
Price Each: From $438.74
Total Price: $584.98
Quantity:

Quantity 1-9 10-24 25-49 50-99 100+
Price for each $584.98 $561.58 $526.48 $485.53 $438.74

E40-1 Specifications:

  • Ratio: 1:1
  • Backlash: ≈1°
  • Input Bore Diameter: 15mm
  • Output Bore Diameter: 15mm
  • Material: Alum. / Steel
  • Type: Helical
  • Output Torque @ 100 RPM: 8.00 Nm
  • Output Torque @ 1000 RPM: 3.80 Nm
  • Output Torque @ 3000 RPM: 2.30 Nm
  • Efficiency @ 1000 RPM: 92%
  • Weight: 4.0502 lb.
  • Max Input RPM: 3000
  • Output Type: Cross Axis
  • Box Height: 104mm
  • Box Width: 63mm
  • Box Length: 63mm
  • Housing Material: Aluminum
  • Use Feather Key: KK5-30
  • Shaft Length: N/A
  • Key Length: 30
  • Key Width: 5
  • Key Height: 5
  • Shaft Output Type: Offset Cross Axis
  • Use Double Shaft: E40-DX
  • Use Single Shaft: E40-X
