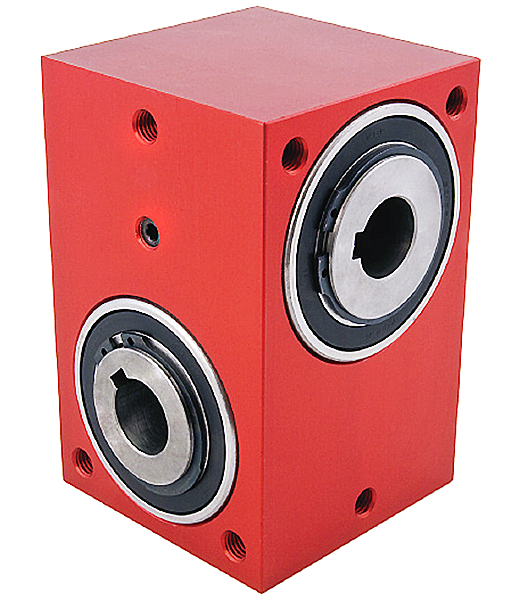

Crossed Axis Gearbox - 1:1 Ratio

Crossed Axis Gearbox, 20mm Input Bore, 20mm Output Bore, 2:1 Ratio
Backlash ≈1° arc degree
Price Each:
om $624.83
Total Price:
$833.1100
Quantity:

Quantity 1-9 10-24 25-49 50-99 100+
Price for each $833.11 $799.79 $749.80 $691.48 $624.83

E50-1 Specifications:

  • Ratio: 1:1
  • Input Bore Diameter: 20mm
  • Output Bore Diameter: 20mm
  • Material: Alum. / Steel
  • Efficiency @ 1000 RPM: 93%
  • Output Torque @ 100 RPM: 12.00 Nm
  • Output Torque @ 1000 RPM: 6.00 Nm
  • Output Torque @ 3000 RPM: 3.00 Nm
  • Box Width: 80mm
  • Box Length: 80mm
  • Shaft Length: N/A
  • Housing Material: Aluminum
  • Use Feather Key: KK6-32
  • Key Length: 32
  • Key Width: 6
  • Key Height: 6
  • Shaft Output Type: Offset Cross Axis
  • Use Double Shaft: E50-DX
  • Use Single Shaft: E50-X

E50-1 Product Files:
