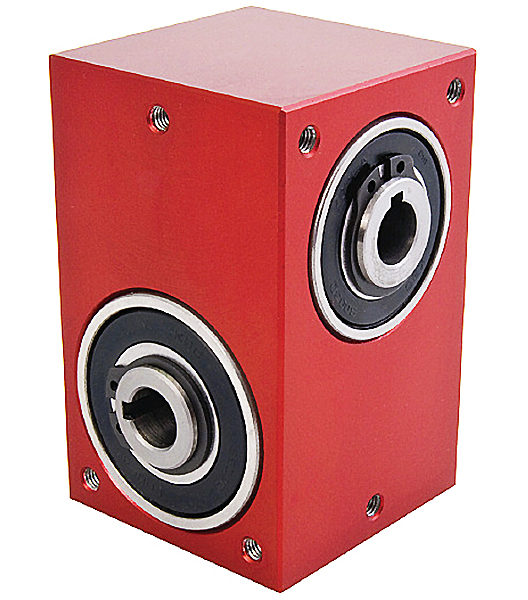

Crossed Axis Gearbox - 8:1 Ratio

Part Number: EA30-8

Crossed Axis Gearbox, 0.375" Input Bore, 0.375" Output Bore, 8:1 Ratio
Backlash ≈1° arc degree

Price Each:

om $408.07

Quantity:

Total Price:

$536.9400

Add to Cart

Quantity:	Price:
1-9	$536.94
10-24	$515.46
25-49	$483.25
50-99	$445.66
100+	$408.07

EA30-8 Specifications:
Ratio	8:1
Input Bore Diameter	0.3750 in.
Output Bore Diameter	0.3750 in.
Material	Alum. / Steel
Efficiency @ 1000 RPM	80%
Output Torque @ 100 RPM	57.5 lbf.in
Output Torque @ 1000 RPM	31.9 lbf.in
Output Torque @ 3000 RPM	N/A
Box Width	2.13 in.
Box Length	2.13 in.
Shaft Length	N/A
Housing Material	Aluminum
Use Feather Key	KK125-1250
Key Length	1-1/4 in.
Key Width	1/8 in.
Key Height	1/8 in.
Shaft Output Type	Offset Cross Axis
Use Double Shaft	N/A
Use Single Shaft	N/A

EA30-8 Product Files:
• Catalog Page.pdf
