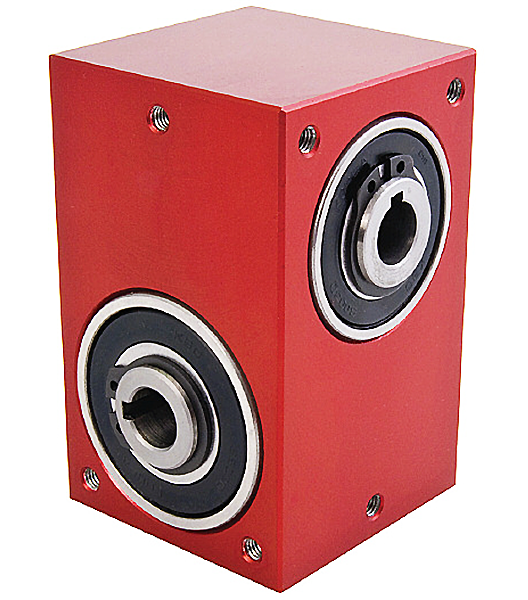

Crossed Axis Gearbox - 10:1 Ratio

Part Number: EA40-10-LH

Crossed Axis Gearbox, 0.500 inch Input Bore, 0.500 Output Bore, 10:1 Ratio
Backlash ≈1° arc degree

Price Each:

om $683.57

Quantity:

Total Price:

$899.4300

Add to Quote

EA40-10-LH Specifications:
Ratio	10:1
Input Bore Diameter	0.5000 in.
Output Bore Diameter	0.5000 in.
Material	Alum. / Steel
Efficiency @ 1000 RPM	73%
Output Torque @ 100 RPM	132.8 lbf.in
Output Torque @ 1000 RPM	70.8 lbf.in
Output Torque @ 3000 RPM	N/A
Box Width	2.84 in.
Box Length	2.48 in.
Shaft Length	N/A
Housing Material	Aluminum
Use Feather Key	KK187-1250
Key Length	1-1/4 in.
Key Width	3/16 in.
Key Height	3/16 in.
Shaft Output Type	Offset Cross Axis
Use Double Shaft	N/A
Use Single Shaft	N/A

EA40-10-LH Product Files:
• Catalog Page.pdf
