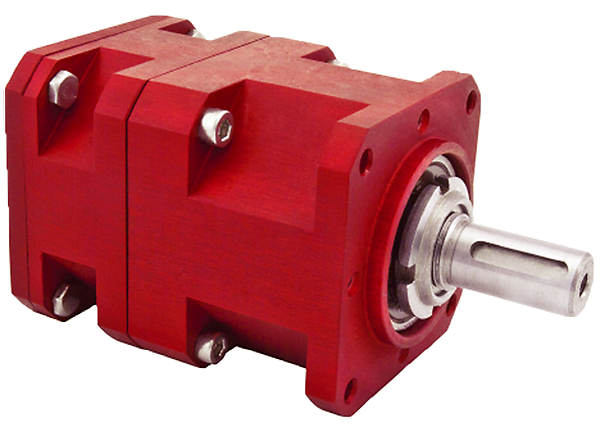

Epicyclic Gearbox - 3:1 Ratio EHD04-3

Epicyclic Gearbox, 5mm Input Bore, 10mm Output Shaft, 3:1 Ratio
Price Each:
$475.59
Total Price:
$634.12
Quantity:

Quantity 1-9 10-24 25-49 50-99 100+
Price for each $634.12 $608.76 $570.71 $526.32 $475.59

EHD04-3 Specifications:

  • Ratio: 3:1
  • Unit System: metric
  • Backlash: ≈30 arc-min
  • Input Bore: 5mm
  • Output Shaft Diameter: 10mm
  • Type: Planetary
  • Output Torque @ 3000 RPM: 3.60 Nm
  • Weight: 440g
  • Material: Alum. / Steel
  • Box Height: 45mm
  • Box Width: 45mm
  • Input Keyway Height: 1.5mm
  • Box Length: 61mm
  • Max Input RPM: 3,000
  • Housing Material: Aluminum
  • Output Key Width: 3mm
  • Input Key Length: 12mm
  • Output Shaft Length: 20mm
  • Input Key Width: 1.5mm
  • Shaft Output Type: In-Line
  • Use Output Key: KK3-15
  • Output Key Height: 3mm
  • Use Input Key: SEP1.5-12
  • Output Key Length: 15mm
