In-Line Low Backlash Taper > In-Line Low Backlash Taper - 8:1 Ratio. TG112-8ADC

In-Line Low Backlash Taper - 8:1 Ratio. TG112-8ADC

Part Number: TG112-8ADC

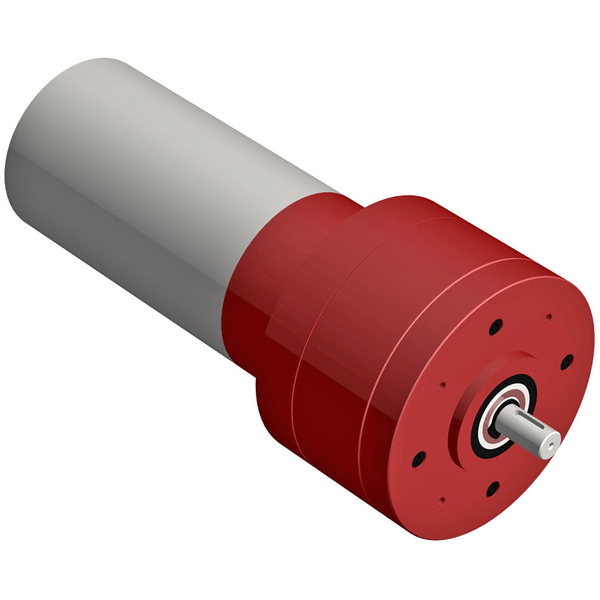

In-Line Low Backlash Taper, DC Motor Input, 12mm Output Shaft, 8:1 Ratio.
Price Each:
om $1,398.29
Quantity:
Total Price:
$1,839.85
Quantity:Price:
1-9 $1,839.85
10-24 $1,766.26
25-49 $1,655.87
50-99 $1,527.08
100+  $1,398.29
TG112-8ADC Specifications:
Ratio 8:1
Output Shaft Diameter 12mm
Material Alum. / Steel
Box Length 285mm
Use Output Key KK4-15
Housing Material Aluminum
Output Key Width 4mm
Box Diameter 112mm
Shaft Output Type In-Line
Output Key Height 4mm
Output Key Length 15mm
TG112-8ADC Product Files:
• Catalog Page.pdf
View CAD Model View CAD Library
