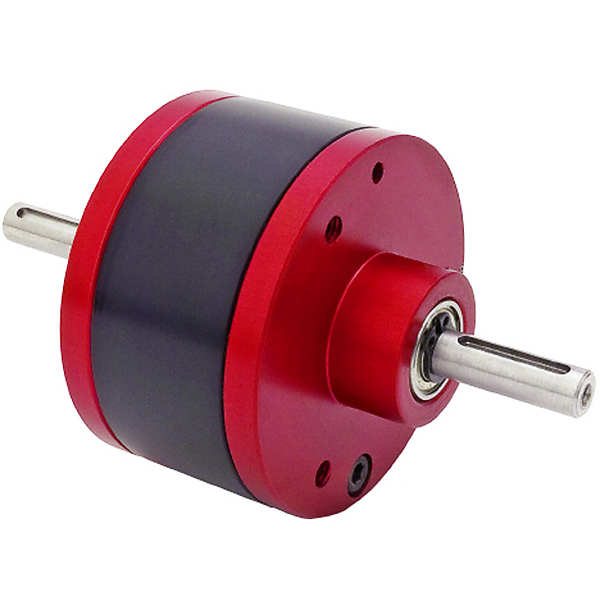

Planetary Gearbox - 10:1 Ratio J51-10

Planetary Gearbox, 6mm Input Shaft, 6mm Shaft Output, 10:1 Ratio
Price Each: From $248.57
Total Price: $331.43
Quantity:

Quantity 1-9 10-24 25-49 50-99 100+
Price for each $331.43 $318.17 $298.29 $275.09 $248.57

J51-10 Specifications:

  • Ratio: 10:1
  • Unit System: metric
  • Backlash: ≤6°
  • Output Shaft Diameter: 6mm
  • Efficiency @ 1000 RPM: 0.92
  • Type: In-Line
  • Output Torque @ 3000 RPM: 0.16 Nm
  • Weight: 140g
  • Material: Delrin/Aluminum/Steel
  • Box Length: 50mm
  • Input Keyway Height: 2mm
  • Max Input RPM: 4,000
  • Housing Material: Delrin/Aluminum
  • Output Key Width: 2mm
  • Input Key Length: 14mm
  • Input Shaft Length: 20mm
  • Output Shaft Length: 20mm
  • Box Diameter: 50mm
  • Input Key Width: 2mm
  • Shaft Output Type: In-Line
  • Use Output Key: KK2-14
  • Output Key Height: 2mm
  • Use Input Key: KK2-14
  • Output Key Length: 14mm
  • Input Shaft Diameter: 6mm
