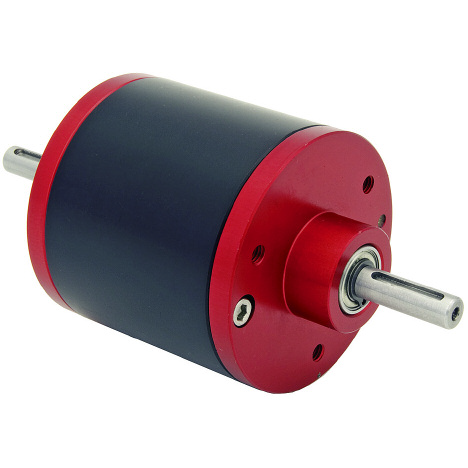

Inline Spur Gear Reducer - 200:1 Ratio

Part Number: J53-200

Inline Spur Gear Reducer, 6mm Input Shaft, 6mm Output Shaft, 200:1 Ratio
Price Each:
om $562.30
Quantity:
Total Price:
$739.8700
Quantity:Price:
1-9 $739.87
10-24 $710.28
25-49 $665.88
50-99 $614.09
100+  $562.30
J53-200 Specifications:
Ratio 200:1
Output Shaft Diameter 6mm
Input Shaft Diameter 6mm
Material Delrin/Aluminum/Steel
Efficiency @ 1000 RPM 0.85
Box Length 50mm
Input Keyway Height 2mm
Use Output Key KK2-14
Housing Material Delrin/Aluminum
Input Key Length 14mm
Output Key Width 2mm
Box Diameter 50mm
Shaft Output Type In-Line
Output Key Height 2mm
Output Key Length 14mm
J53-200 Product Files:
• Catalog Page.pdf
View CAD Model View CAD Library
