High Speed In-Line Spur Gear Box > Inline Spur Gear Reducer - 80:1 Ratio, J66-80

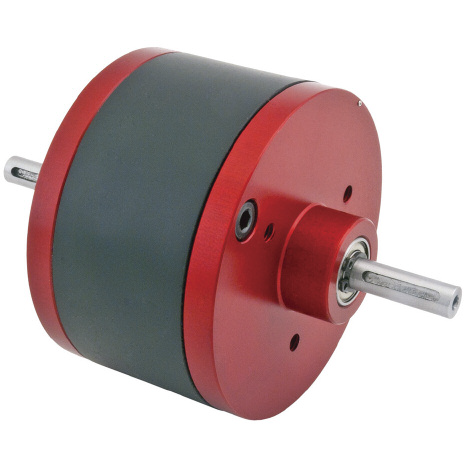

Inline Spur Gear Reducer - 80:1 Ratio, J66-80

Part Number: J66-80

Inline Spur Gear Reducer, 6mm Input Shaft, 6mm Output Shaft, 80:1 Ratio
Price Each:
om $561.91
Quantity:
Total Price:
$739.36
Quantity:Price:
1-9 $739.36
10-24 $709.79
25-49 $665.42
50-99 $613.67
100+  $561.91
J66-80 Specifications:
Ratio 80:1
Output Shaft Diameter 6mm
Input Shaft Diameter 6mm
Material Delrin/Aluminum/Steel
Efficiency @ 1000 RPM 0.85
Box Length 60mm
Input Keyway Height 2mm
Use Output Key KK2-14
Housing Material Delrin/Aluminum
Input Key Length 14mm
Output Key Width 2mm
Box Diameter 63mm
Shaft Output Type In-Line
Output Key Height 2mm
Output Key Length 14mm
J66-80 Product Files:
• Catalog Page.pdf
View CAD Model View CAD Library
