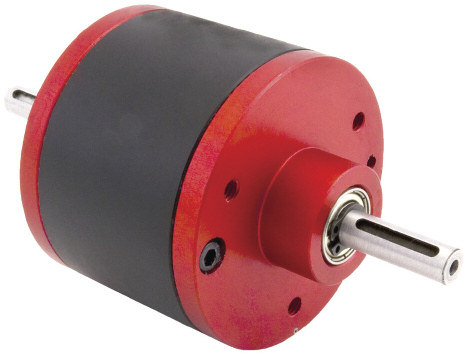

Planetary Gearbox - 4:1 Ratio JHD51-4

Planetary Gearbox, 6mm Input Shaft, 6mm Output Shaft, 4:1 Ratio
Price Each: From $307.37
Total Price: $409.82
Quantity:

Quantity 1-9 10-24 25-49 50-99 100+
Price for each $409.82 $393.43 $368.84 $340.15 $307.37

JHD51-4 Specifications:

  • Ratio: 4:1
  • Unit System: metric
  • Backlash: ≤6°
  • Output Shaft Diameter: 6mm
  • Efficiency @ 1000 RPM: 0.92
  • Type: In-Line
  • Output Torque @ 3000 RPM: 1.02 Nm
  • Weight: 140g
  • Material: Delrin/Aluminum/Steel
  • Box Length: 40mm
  • Input Keyway Height: 2mm
  • Max Input RPM: 4,000
  • Housing Material: Delrin/Aluminum
  • Output Key Width: 2mm
  • Input Key Length: 14mm
  • Input Shaft Length: 20mm
  • Output Shaft Length: 20mm
  • Box Diameter: 50mm
  • Input Key Width: 2mm
  • Shaft Output Type: In-Line
  • Use Output Key: KK2-14
  • Output Key Height: 2mm
  • Output Key Length: 14mm
  • Input Shaft Diameter: 6mm
