High Speed In-Line Spur Gear Box > Inline Spur Gear Reducer - 10:1 Ratio

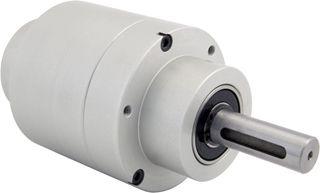

Inline Spur Gear Reducer - 10:1 Ratio

Part Number: NH62-10

Inline Spur Gear Reducer, 6mm to 10mm Bore Input (specify), 12mm Output Shaft, 10:1 Ratio
Price Each:
ll for Price
Quantity:
NH62-10 Specifications:
Ratio 10:1
Output Shaft Diameter 12mm
Input Shaft Diameter 12mm
Material Alum. / Steel
Efficiency @ 1000 RPM 0.85
Box Length 70mm
Input Keyway Height 4mm
Use Output Key KK4-25
Housing Material Aluminum
Input Key Length N/A
Output Key Width 4mm
Box Diameter 60mm
Shaft Output Type In-Line
Output Key Height 4mm
Output Key Length 25mm
NH62-10 Product Files:
• Catalog Page.pdf
View CAD Model View CAD Library
