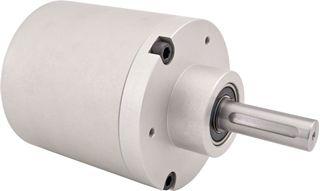

Inline Spur Gear Reducer - 20:1 Ratio

Part Number: NH92-20

Inline Spur Gear Reducer, 8mm to 12mm Bore Input (specify), 15mm Output Shaft, 20:1 Ratio
Price Each:
ll for Price
Quantity:
NH92-20 Specifications:
Ratio 20:1
Output Shaft Diameter 15mm
Input Shaft Diameter 15mm
Material Alum. / Steel
Efficiency @ 1000 RPM 0.84
Box Length 94mm
Input Keyway Height 5mm
Use Output Key KK5-35
Housing Material Aluminum
Input Key Length N/A
Output Key Width 5mm
Box Diameter 90mm
Shaft Output Type In-Line
Output Key Height 5mm
Output Key Length 35mm
NH92-20 Product Files:
• Catalog Page.pdf
View CAD Model View CAD Library
