High Speed In-Line Spur Gear Box > Inline Spur Gear Reducer - 12:1 Ratio

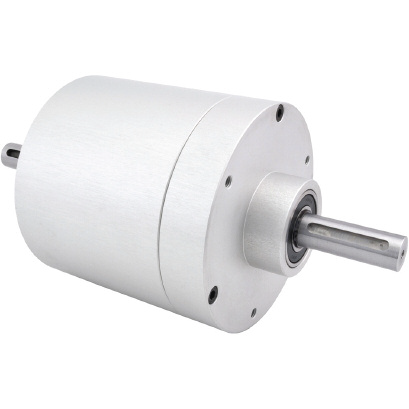

Inline Spur Gear Reducer - 12:1 Ratio

Part Number: NT122-12

Inline Spur Gear Reducer, 17mm Input Shaft, 17mm Output Shaft, 12:1 Ratio
Price Each:
om $1,108.50
Quantity:
Total Price:
$1,458.5500
Quantity:Price:
1-9 $1,458.55
10-24 $1,400.21
25-49 $1,312.70
50-99 $1,210.60
100+  $1,108.50
NT122-12 Specifications:
Ratio 12:1
Output Shaft Diameter 17mm
Input Shaft Diameter 17mm
Material Alum. / Steel
Efficiency @ 1000 RPM 0.88
Box Length 120mm
Input Keyway Height 5mm
Use Output Key KK5-40
Housing Material Aluminum
Input Key Length 40mm
Output Key Width 5mm
Box Diameter 120mm
Shaft Output Type In-Line
Output Key Height 5mm
Output Key Length 40mm
NT122-12 Product Files:
• Catalog Page.pdf
View CAD Model View CAD Library
