High Speed In-Line Spur Gear Box > Inline Spur Gear Reducer - 2:1 Ratio

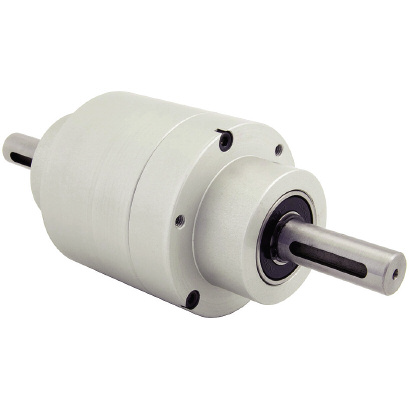

Inline Spur Gear Reducer - 2:1 Ratio

Part Number: NT61-2

Inline Spur Gear Reducer, 12mm Input Shaft, 12mm Output Shaft, 2:1 Ratio
Price Each:
om $643.62
Quantity:
Total Price:
$846.8700
Quantity:Price:
1-9 $846.87
10-24 $813.00
25-49 $762.18
50-99 $702.90
100+  $643.62
NT61-2 Specifications:
Ratio 2:1
Output Shaft Diameter 12mm
Input Shaft Diameter 12mm
Material Alum. / Steel
Efficiency @ 1000 RPM 0.92
Box Length 56mm
Input Keyway Height 4mm
Use Output Key KK4-25
Housing Material Aluminum
Input Key Length 25mm
Output Key Width 4mm
Box Diameter 60mm
Shaft Output Type In-Line
Output Key Height 4mm
Output Key Length 25mm
NT61-2 Product Files:
• Catalog Page.pdf
View CAD Model View CAD Library
