High Speed In-Line Spur Gear Box > Inline Spur Gear Reducer - 40:1 Ratio

Inline Spur Gear Reducer - 40:1 Ratio

Part Number: NT63-40

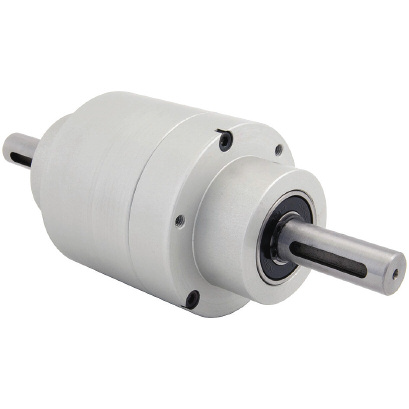

Inline Spur Gear Reducer, 12mm Input Shaft, 12mm Output Shaft, 40:1 Ratio
Price Each:
om $857.86
Quantity:
Total Price:
$1,128.7600
Quantity:Price:
1-9 $1,128.76
10-24 $1,083.61
25-49 $1,015.88
50-99 $936.87
100+  $857.86
NT63-40 Specifications:
Ratio 40:1
Output Shaft Diameter 12mm
Input Shaft Diameter 12mm
Material Alum. / Steel
Efficiency @ 1000 RPM 0.8
Box Length 84mm
Input Keyway Height 4mm
Use Output Key KK4-25
Housing Material Aluminum
Input Key Length 25mm
Output Key Width 4mm
Box Diameter 60mm
Shaft Output Type In-Line
Output Key Height 4mm
Output Key Length 25mm
NT63-40 Product Files:
• Catalog Page.pdf
View CAD Model View CAD Library
