High Speed In-Line Spur Gear Box > Inline Spur Gear Reducer - 4:1 Ratio

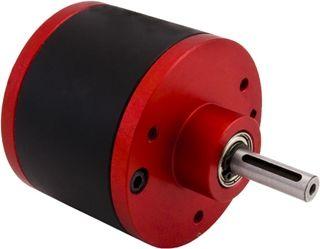

Inline Spur Gear Reducer - 4:1 Ratio

Part Number: XJHD51-4

Inline Spur Gear Reducer, 4mm to 7mm Bore Input (specify), 6mm Output Shaft, 4:1 Ratio
Price Each:
95.64
Quantity:
Total Price:
$495.6400
XJHD51-4 Specifications:
Ratio 4:1
Output Shaft Diameter 6mm
Input Bore Diameter Input bore, tapped holes & register must be specified when ordering. Contact Ondrives engineers for assistance.
Material Delrin/Aluminum/Steel
Efficiency @ 1000 RPM 0.92
Box Length 40mm
Input Keyway Height N/A
Use Output Key KK2-14
Housing Material Delrin/Aluminum
Input Key Length N/A
Output Key Width 2mm
Box Diameter 50mm
Shaft Output Type In-Line
Output Key Height 2mm
Output Key Length 14mm
XJHD51-4 Product Files:
• Catalog Page.pdf
View CAD Model View CAD Library
