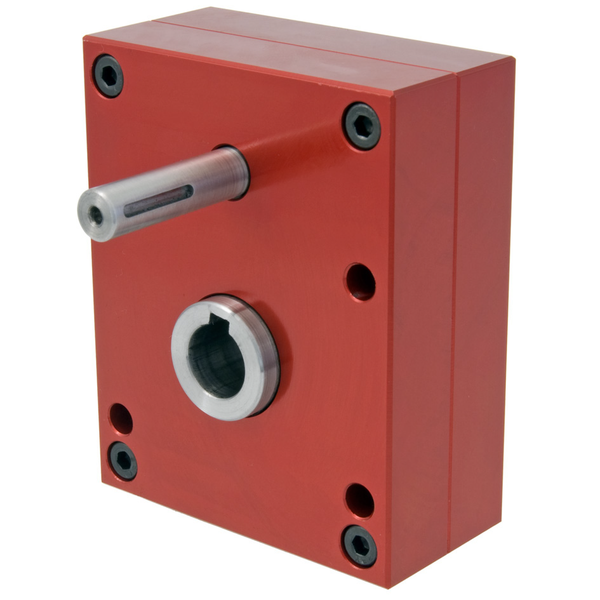

Offset Spur Gearbox - 4:1 Ratio FF15-XH-4

Part Number: FF15-XH-4

Offset Spur Gearbox, 8mm Shaft Input, 12mm Bore Output, 4:1 Ratio, Hardened Gears
Price Each:
om $565.04
Quantity:
Total Price:
$743.4800
Quantity:Price:
1-9 $743.48
10-24 $713.74
25-49 $669.13
50-99 $617.09
100+  $565.05
FF15-XH-4 Specifications:
Ratio 4:1
Input Shaft Diameter 8mm
Output Bore 12mm
Material Alum. / Steel
Efficiency % @ 1000 RPM 0.93
Mount Hole Width 52mm
Mount Hole Height 36mm
Box Width 64mm
Box Length 32mm
Input Keyway Height 2mm
Use Output Key KK4-25
Housing Material Aluminum
Input Key Length 14mm
Output Key Width 4mm
Shaft Output Type Parallel
Output Key Height 4mm
Mount Hole 5.5mm
Output Key Length 25mm
FF15-XH-4 Product Files:
• Catalog Page.pdf
View CAD Model View CAD Library
