Offset Parallel Shaft Reducers > Offset Spur Gearbox - 2:1 Ratio FF20-2

Offset Spur Gearbox - 2:1 Ratio FF20-2

Part Number: FF20-2

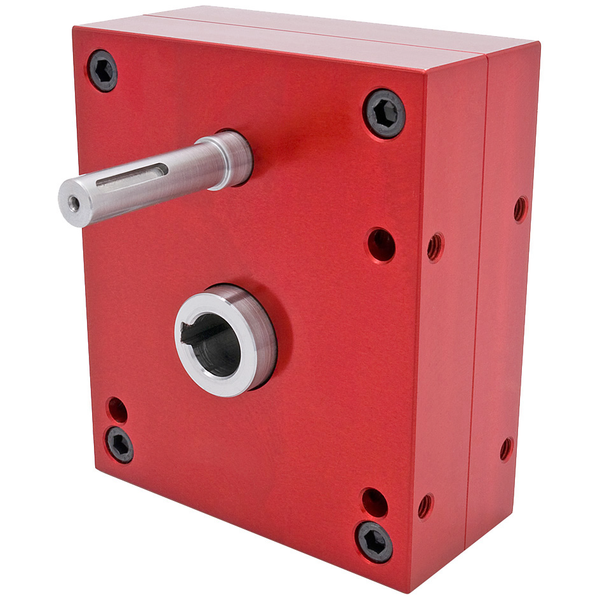

Offset Spur Gearbox, 10mm Shaft Input, 15mm Bore Output, 2:1 Ratio
Price Each:
om $477.64
Quantity:
Total Price:
$628.4800
Quantity:Price:
1-9 $628.48
10-24 $603.34
25-49 $565.63
50-99 $521.64
100+  $477.65
FF20-2 Specifications:
Ratio 2:1
Input Shaft Diameter 10mm
Output Bore 15mm
Material Alum. / Steel
Efficiency % @ 1000 RPM 0.93
Mount Hole Width 80mm
Mount Hole Height 60mm
Box Width 100mm
Box Length 48mm
Input Keyway Height 3mm
Use Output Key KK5-40
Housing Material Aluminum
Input Key Length 20mm
Output Key Width 5mm
Shaft Output Type Parallel
Output Key Height 5mm
Mount Hole 6.8mm
Output Key Length 40mm
FF20-2 Product Files:
• Catalog Page.pdf
View CAD Model View CAD Library
