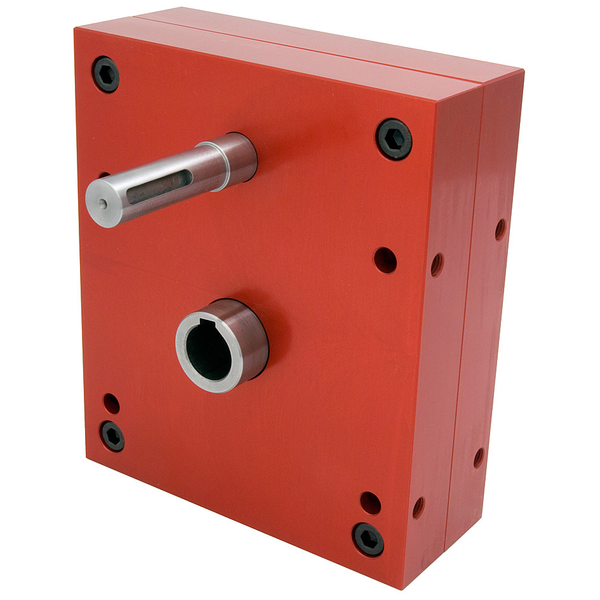

Offset Spur Gearbox - 2:1 Ratio FF30-2

Part Number: FF30-2

Offset Spur Gearbox, 15mm Shaft Input, 20mm Bore Output, 2:1 Ratio
Price Each:
om $638.50
Quantity:
Total Price:
$840.1300
Quantity:Price:
1-9 $840.13
10-24 $806.53
25-49 $756.12
50-99 $697.31
100+  $638.50
FF30-2 Specifications:
Ratio 2:1
Input Shaft Diameter 15mm
Output Bore 20mm
Material Alum. / Steel
Efficiency % @ 1000 RPM 0.93
Mount Hole Width 120mm
Mount Hole Height 90mm
Box Width 150mm
Box Length 60mm
Input Keyway Height 5mm
Use Output Key KK6-50
Housing Material Aluminum
Input Key Length 30mm
Output Key Width 6mm
Shaft Output Type Parallel
Output Key Height 6mm
Mount Hole 8.5mm
Output Key Length 50mm
FF30-2 Product Files:
• Catalog Page.pdf
View CAD Model View CAD Library
