Offset Parallel Shaft Reducers > Offset Spur Gearbox - 7:1 Ratio FF40-XH-7

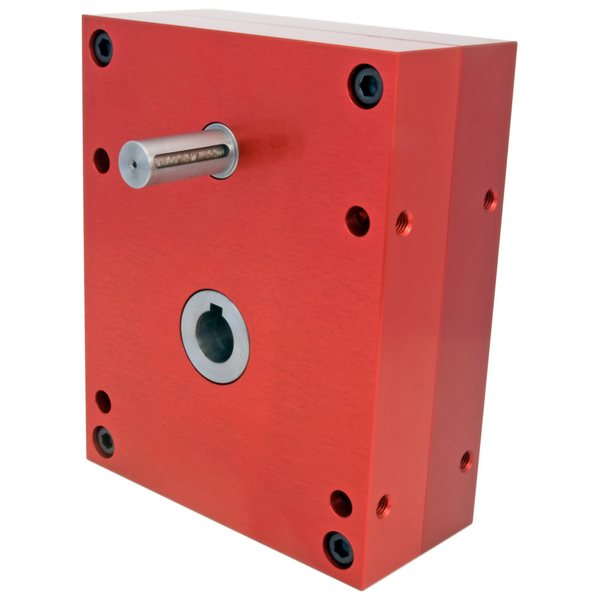

Offset Spur Gearbox - 7:1 Ratio FF40-XH-7

Part Number: FF40-XH-7

Offset Spur Gearbox, 20mm Shaft Input, 25mm Bore Output, 7:1 Ratio, Hardened Gears
Price Each:
om $1,468.59
Quantity:
Total Price:
$1,932.3500
Quantity:Price:
1-9 $1,932.35
10-24 $1,855.06
25-49 $1,739.12
50-99 $1,603.85
100+  $1,468.59
FF40-XH-7 Specifications:
Ratio 7:1
Input Shaft Diameter 20mm
Output Bore 25mm
Material Alum. / Steel
Efficiency % @ 1000 RPM 0.93
Mount Hole Width 160mm
Mount Hole Height 128mm
Box Width 190mm
Box Length 90mm
Input Keyway Height 6mm
Use Output Key KK8-7-50
Housing Material Aluminum
Input Key Length 45mm
Output Key Width 8mm
Shaft Output Type Parallel
Output Key Height 7mm
Mount Hole 12.5mm
Output Key Length 50mm
FF40-XH-7 Product Files:
• Catalog Page.pdf
View CAD Model View CAD Library
